On-Vehicle Inspection [10/2015 - ]: Procedure

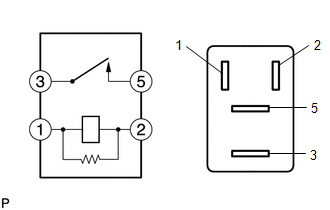

- INSPECT EFI CIRCUIT OPENING RELAY ASSEMBLY (C/OPN RELAY)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Battery voltage not applied between terminals 1 and 2 10 kΩ or higher Battery voltage applied between terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the EFI circuit opening relay assembly (C/OPN RELAY).
- Measure the resistance according to the value(s) in the table below.
- INSPECT EFI 2 RELAY (EFI MAIN NO. 2 RELAY)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Battery voltage not applied between terminals 1 and 2 10 kΩ or higher Battery voltage applied between terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the EFI 2 relay (EFI MAIN NO. 2 RELAY).
- Measure the resistance according to the value(s) in the table below.
- INSPECT VVT RELAY (VVT RH RELAY)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Battery voltage not applied between terminals 1 and 2 10 kΩ or higher Battery voltage applied between terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the VVT relay (VVT RH RELAY).
- Measure the resistance according to the value(s) in the table below.
- INSPECT VVT RELAY (VVT LH RELAY)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Battery voltage not applied between terminals 1 and 2 10 kΩ or higher Battery voltage applied between terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the VVT relay (VVT LH RELAY).
- Measure the resistance according to the value(s) in the table below.
