Installation [10/2015 - ]: Procedure

  1. INSTALL OCCUPANT DETECTION SENSOR (FRONT SEAT CUSHION PAD WITH COVER RH)

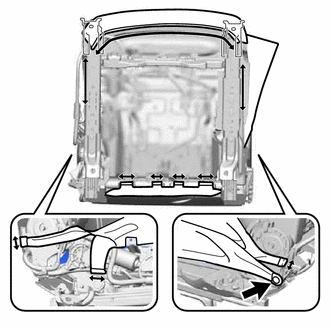

    1. Engage the hooks to install the occupant detection sensor (front seat cushion pad with cover RH).
      GTY640473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the strap of the occupant detection sensor (front seat cushion pad with cover RH).

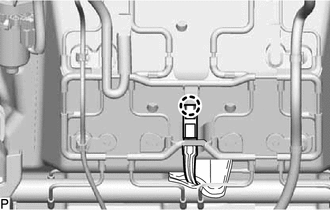

    3. Engage the claw to install the connector.
      GTY682076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the connector.
  2. CONNECT FRONT SEATBACK PAD WITH COVER RH

    HINT:

    Use the same procedure as for the driver side.

    Refer to PROCEDURE - Step 26

  3. INSTALL FRONT INNER SEAT CUSHION SHIELD RH

    HINT:

    Use the same procedure as for the driver side.

    Refer to PROCEDURE - Step 27

  4. INSTALL FRONT SEAT CUSHION SHIELD RH

    HINT:

    Use the same procedure as for the driver side.

    Refer to PROCEDURE - Step 30

  5. INSTALL FRONT INNER NO. 1 SEAT CUSHION SHIELD RH

    HINT:

    Use the same procedure as for the driver side.

    Refer to PROCEDURE - Step 33

  6. INSTALL FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure as for the driver side.

    Refer to INSTALLATION [10/2015 - ]
