Removal [10/2015 - 09/2017]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure as for the driver side.

    Refer to REMOVAL [10/2015 - 09/2017]

  2. REMOVE FRONT INNER NO. 1 SEAT CUSHION SHIELD RH

    HINT:

    Use the same procedure as for the driver side.

    Refer to PROCEDURE - Step 7

  3. REMOVE FRONT SEAT CUSHION SHIELD RH

    HINT:

    Use the same procedure as for the driver side.

    Refer to PROCEDURE - Step 10

  4. REMOVE FRONT INNER SEAT CUSHION SHIELD RH

    HINT:

    Use the same procedure as for the driver side.

    Refer to PROCEDURE - Step 13

  5. DISCONNECT FRONT SEATBACK PAD WITH COVER RH

    HINT:

    Use the same procedure as for the driver side.

    Refer to PROCEDURE - Step 14

  6. REMOVE OCCUPANT DETECTION SENSOR (FRONT SEAT CUSHION PAD WITH COVER RH)

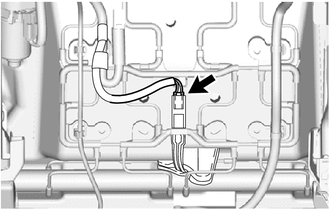

    1. Disconnect the connector.
      GTY640285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw to separate the connector.
      GTY682076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the strap of the occupant detection sensor (front seat cushion pad with cover RH).
      GTY640473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the hooks to remove the occupant detection sensor (front seat cushion pad with cover RH).
