Components [08/2015 - ]

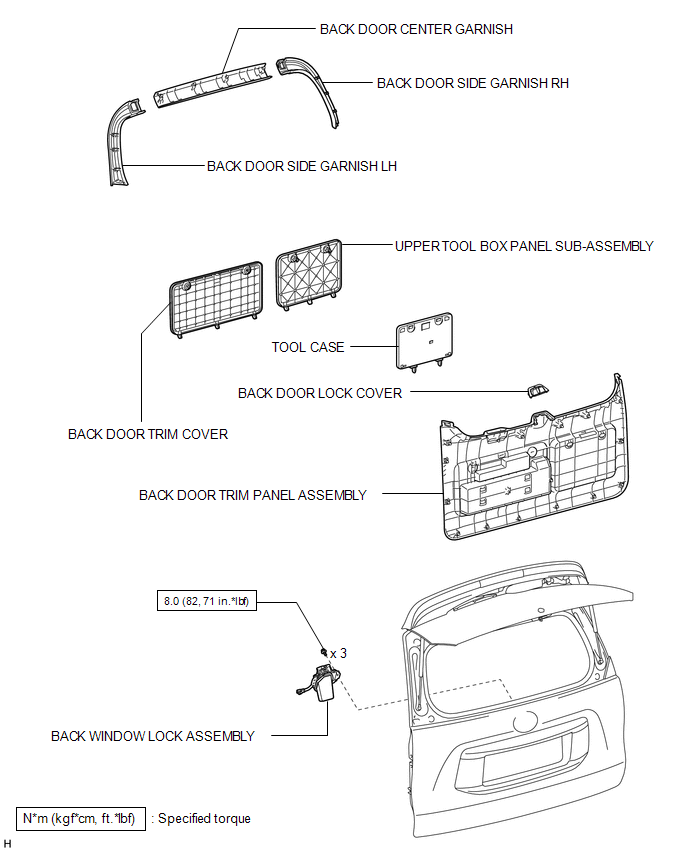

Fig 1: Back Window Lock Replacement Components With Torque Specifications
GTY623209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
