Removal [08/2015 - ]: Procedure

  1. REMOVE FRONT WHEEL
  2. REMOVE FRONT SKID CONTROL SENSOR WIRE
    1. Disconnect the connector from the front speed sensor.

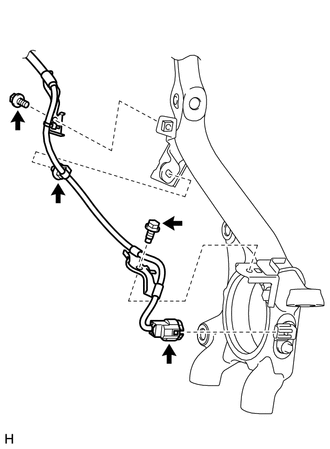

      GTY228314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and 2 harness clamps.
    3. Detach the clip.
    4. Remove the 2 bolts and 2 harness clamps.

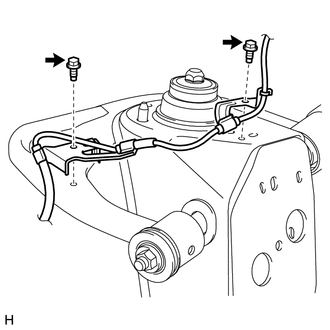

      GTY228313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the connector as follows.

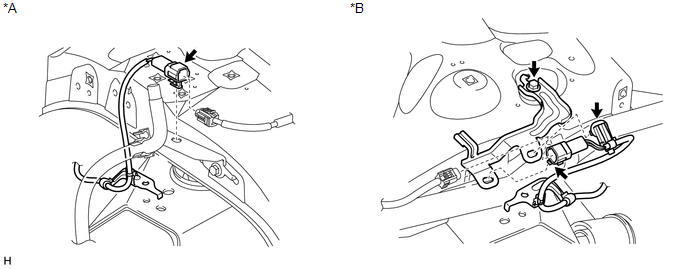

      GTY263175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A for LH *B for RH
      1. for LH:
        1. Disconnect the connector.
        2. Detach the connector.
      2. for RH:
        1. Disconnect the connector.
        2. Detach the connector from the skid control sensor clamp.
        3. Detach the clip.
        4. Remove the bolt and skid control sensor clamp.
  3. REMOVE SKID CONTROL SENSOR CLAMP
    1. Remove the bolt and skid control sensor clamp from the knuckle.

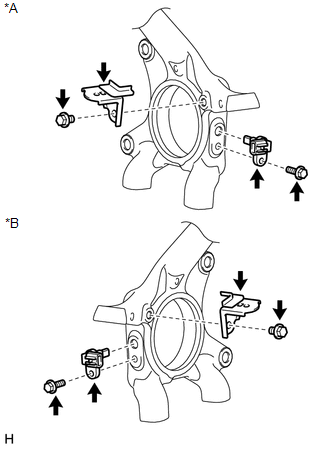

      GTY256016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A for LH
      *B for RH
  4. REMOVE FRONT SPEED SENSOR
    1. Remove the bolt and speed sensor from the knuckle.
      NOTE:

      Pull out the sensor while trying as much as possible not to rotate it.
