Installation [08/2015 - ]: Procedure

HINT:

Perform "Inspection After Repairs" after replacing the mass air flow meter assembly (Refer to INITIALIZATION [08/2015 - ] ).

1. Install the mass air flow meter assembly with the 2 screws.

   Torque: 0.97 N*m (10 kgf*cm, 9 in.*lbf)

1. Attach the 4 clamps to install the air cleaner cap.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

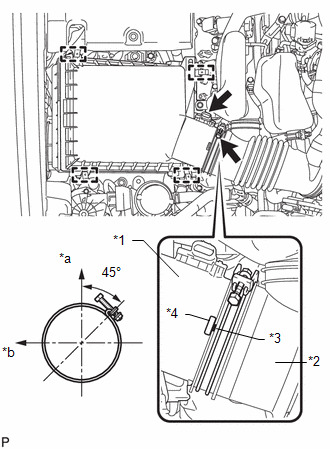

   TEXT IN ILLUSTRATION



   *1	Air Cleaner Cap
   *2	Air Cleaner Hose
   *3	Groove
   *4	Protrusion
   *a	Upper Side
   *b	Front

   HINT:

   When installing the air cleaner hose, align its groove with the protrusion of the throttle body as shown in the illustration.

2. Tighten the hose clamp.

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

   HINT:

   Make sure the direction of the hose clamp is as shown in the illustration.

3. Attach the clamp and connect the mass air flow meter assembly connector.
