Components [08/2015 - ]

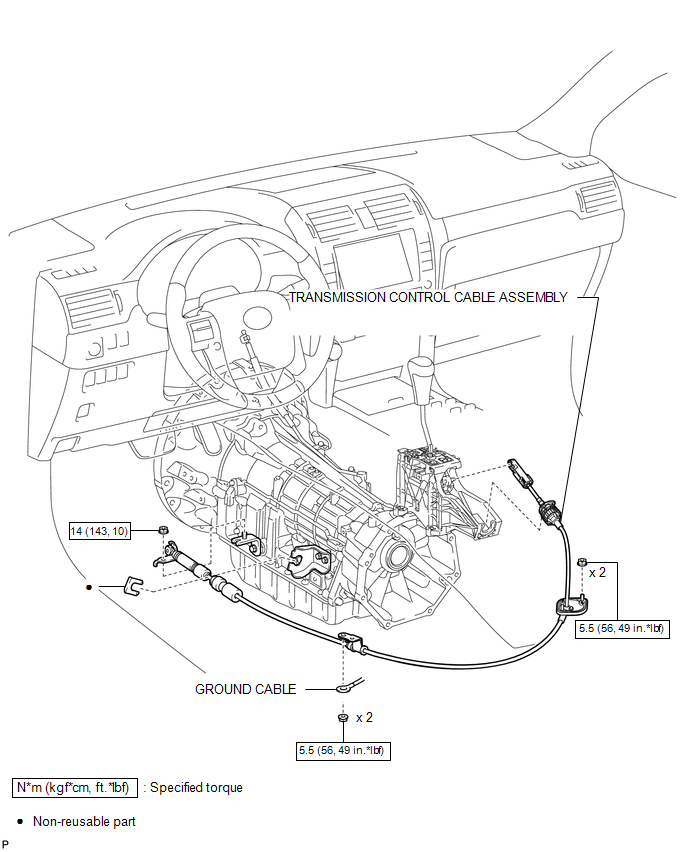

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications
GTY656129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
