Installation [04/2013 - ]: Procedure

INSTALL SEMICONDUCTOR POWER INTEGRATION ECU

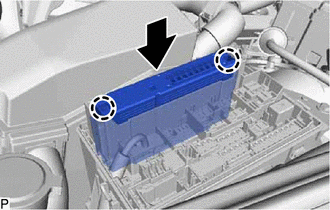

Engage the 2 claws to install the semiconductor pwr integration ECU as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL NO. 2 RELAY BLOCK COVER

Engage the 2 claws (B).

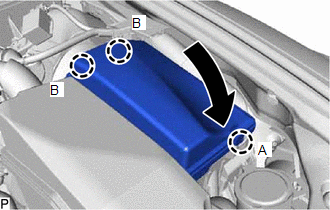

Engage the claw (A) to install the No. 2 relay block cover as shown in the illustration.

CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015] , or refer to INITIALIZATION [08/2015 - 10/2016] , or refer to INITIALIZATION [10/2016 - 10/2017] , or refer to INITIALIZATION [10/2017 - 09/2020] , or refer to INITIALIZATION [09/2020 - 11/2021] , or refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
