Removal [08/2015 - ]: Procedure

  1. REMOVE CENTER NO. 4 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 1

  2. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 3 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - ]

  4. REMOVE AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

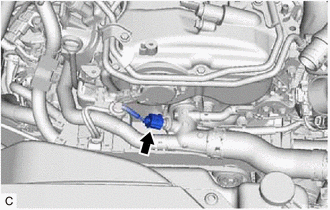

    1. Disconnect the engine coolant temperature sensor connector.
      GTY639799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

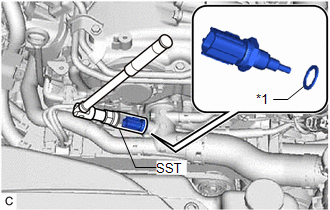

    2. Using SST, remove the engine coolant temperature sensor from water outlet sub-assembly.
      GTY639085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Gasket
      • SST: 09817-33191
      NOTE:

      If the engine coolant temperature sensor has been struck or dropped, replace it.

    3. Remove the gasket from the engine coolant temperature sensor.
