Removal [09/2020 - ]: Procedure

Refer to PROCEDURE - Step 1

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

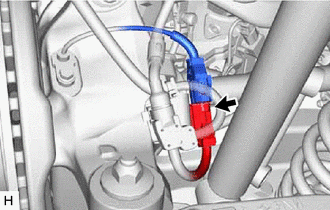

   Disconnect the rear speed sensor connector from the parking brake wire assembly.

   NOTE:

   • Remove any dirt or foreign matter on and around the rear speed sensor connector before performing this step.
   • Do not allow water, oil or dirt to enter the rear speed sensor connector.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

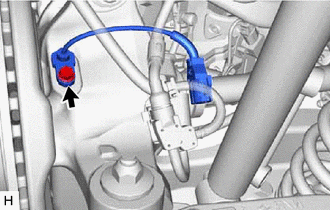

   Remove the bolt and the rear speed sensor from the rear axle carrier sub-assembly.

   NOTE:

   • Keep the tip of the rear speed sensor and installation hole free of foreign matter.
   • Do not rotate or apply excessive force to the rear speed sensor when removing it from the rear axle carrier sub-assembly. Rotating or applying excessive force may result in damage to the rear speed sensor.
