Components [04/2013 - 10/2017]

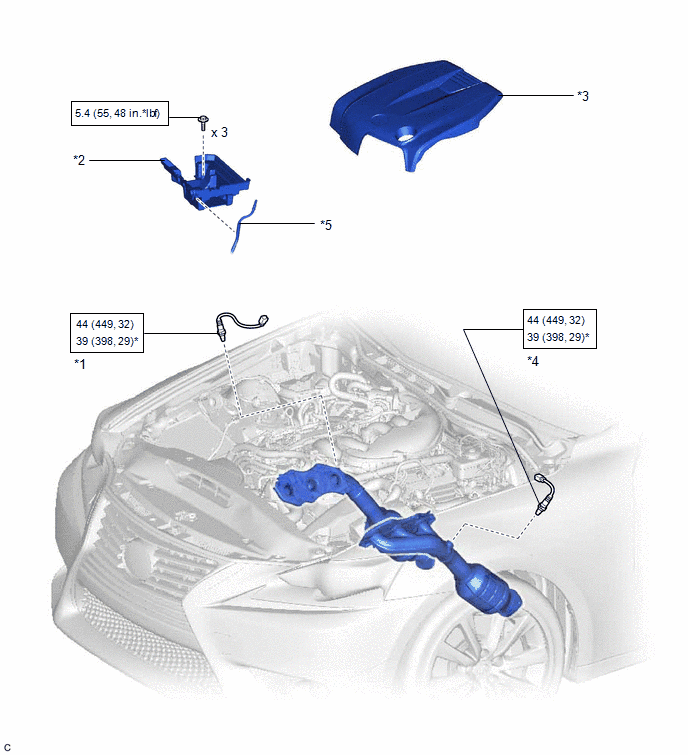

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications
GTY469416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIR FUEL RATIO SENSOR (for Bank 1) *2 BATTERY TRAY
*3 V-BANK COVER SUB-ASSEMBLY *4 AIR FUEL RATIO SENSOR (for Bank 2)
*5 FUEL PIPE - -
N*m (kgf*cm, ft.*lbf): Specified torque * For use with SST
