Removal [04/2013 - 10/2017]: Procedure

REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 3 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 3 [10/2016 - 10/2017]
REMOVE POWER STEERING ECU ASSEMBLY
Refer to REMOVAL [04/2013 - 09/2020]

REMOVE BATTERY TRAY

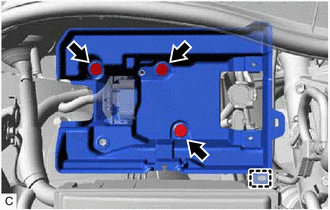

Disconnect the fuel pipe clamp from the battery tray.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE AIR FUEL RATIO SENSOR

For Bank 1:

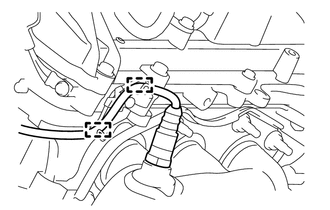

Disconnect the 2 wire harness clamps from the wire harness bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

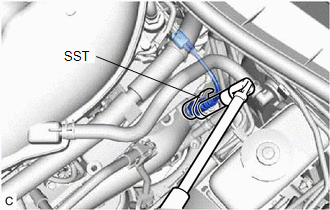

Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.

For Bank 2:

Using SST, remove the air fuel ratio sensor from the exhaust manifold LH.
