Removal [04/2013 - 10/2017]: Procedure

REMOVE COMPRESSOR AND MAGNETIC CLUTCH
- For 2WD:
  Refer to REMOVAL [04/2013 - 08/2015] , or refer to REMOVAL [08/2015 - 10/2017]
- For AWD:
  Refer to REMOVAL [04/2013 - 08/2015] , or refer to REMOVAL [08/2015 - 10/2017]

REMOVE CRANKSHAFT POSITION SENSOR

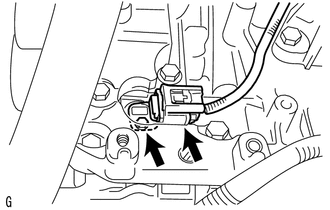

Disconnect the crankshaft position sensor connector.

Remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.
