Installation [04/2013 - 10/2017]: Procedure

HINT:

Perform "Inspection After Repair" after replacing a spark plug.

Refer to INITIALIZATION [04/2013 - 10/2017]

1. Install the 6 spark plugs to the cylinder head sub-assembly.

   Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

   NOTE:

   If a spark plug has been struck or dropped, replace it.

   HINT:

   Install the same parts to their original positions.

HINT:

Perform "Inspection After Repair" after replacing an ignition coil assembly.

Refer to INITIALIZATION [04/2013 - 10/2017]

1. Install the 6 ignition coil assemblies to the cylinder head cover sub-assembly with the 6 bolts.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

   NOTE:

   If an ignition coil assembly has been struck or dropped, replace it.

   HINT:

   Install the same parts to their original positions.

2. Connect the 6 ignition coil assembly connectors.

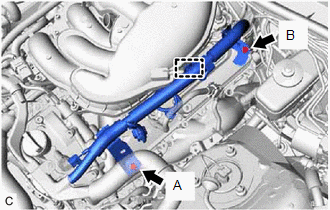

3. Connect the 2 brackets to the cylinder head cover sub-assembly LH with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt A

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

   Bolt B

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

4. Connect the wire harness clamp to the intake air surge tank assembly.
5. Connect the wire harness to the cylinder head cover sub-assembly with the 2 nuts.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

See step  3[04/2013 - 08/2015], or see step  3[08/2015 - 10/2017]

See step  4[04/2013 - 08/2015], or see step  4[08/2015 - 10/2017]

Refer to PROCEDURE - Step 105 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 106 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 106 [10/2016 - 10/2017]

1. Perform "Inspection After Repair" after replacing an ignition coil assembly and spark plug.

   Refer to INITIALIZATION [04/2013 - 10/2017]
