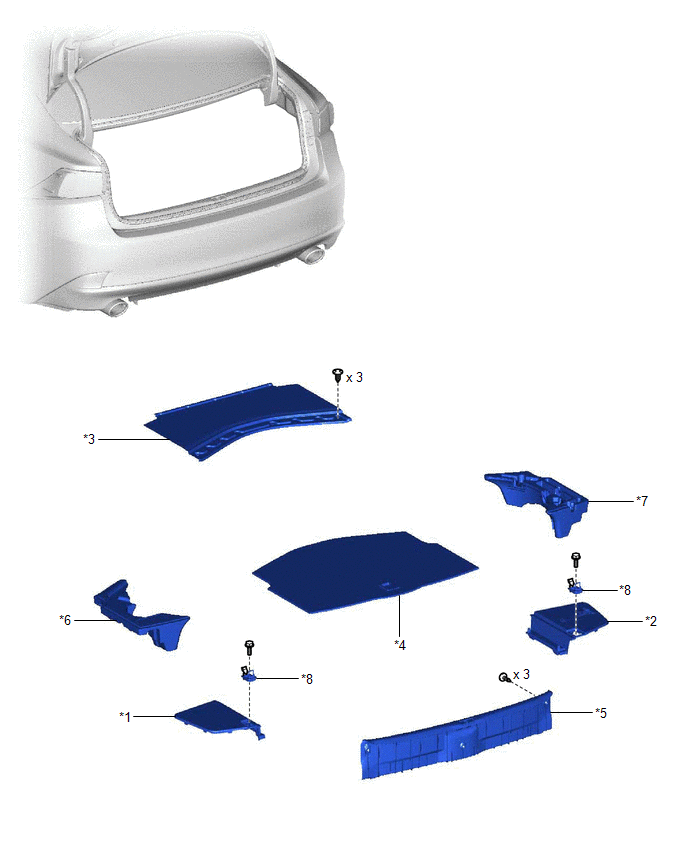

Components [08/2015 - 09/2020]
| *1 | DECK SIDE TRIM BOX LH | *2 | DECK SIDE TRIM BOX RH |
| *3 | FRONT LUGGAGE COMPARTMENT TRIM COVER | *4 | LUGGAGE COMPARTMENT FLOOR MAT |
| *5 | REAR LUGGAGE COMPARTMENT TRIM COVER | *6 | SPARE WHEEL COVER TRAY LH |
| *7 | SPARE WHEEL COVER TRAY RH | *8 | ROPE HOOK ASSEMBLY |
| *A | for Type A | *B | for Type B |

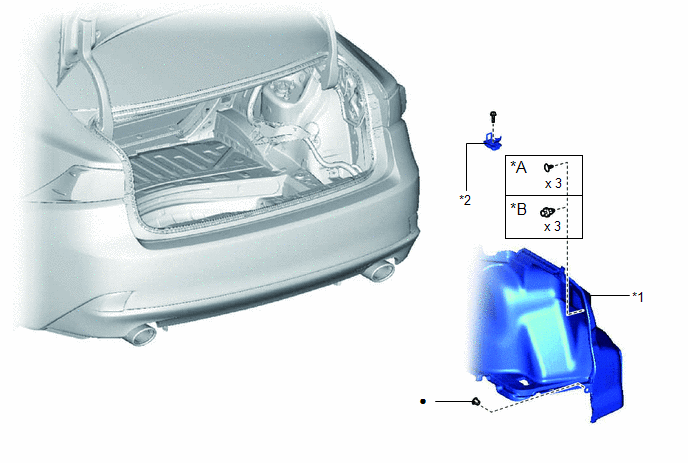

| *1 | LUGGAGE COMPARTMENT TRIM COVER RH | *2 | ROPE HOOK ASSEMBLY |
| • | Non-reusable part | - | - |
Fig 3: Rear Acceleration Sensor Replacement Components With Torque Specifications [08/2015 - 09/2020] (3 Of 3)
| *1 | ACCELERATION SENSOR ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | *T1 | for Type A: 8.5 (87, 75 in.lbf) for Type B: 10 (102, 7) |
