Installation [08/2015 - 09/2020]: Procedure

1. Install the acceleration sensor assembly with the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for Type A
   *B	for Type B

   for Type A

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

   for Type B

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

   NOTE:

   • Avoid any impact to the acceleration sensor assembly.
   • Do not drop the acceleration sensor assembly. If it is dropped, replace it with a new one.
   • There are 2 types of bolts and the tightening torque depends on the type of bolt used as shown in the illustration. Therefore, confirm the tightening torque before installing the bolt.
2. Connect the connector.
3. Return the luggage compartment trim cover RH to its original position.

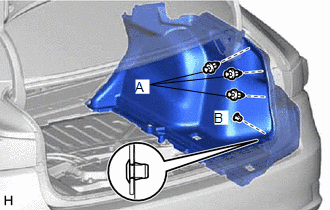

1. Install the luggage compartment trim cover RH with the 3 clips (A).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install a new clip (B).
3. Install the rope hook assembly with the bolt.
4. Engage the 2 claws to close the cover.

Refer to PROCEDURE - Step 12

Refer to PROCEDURE - Step 13

Refer to PROCEDURE - Step 14

Refer to PROCEDURE - Step 15

Refer to PROCEDURE - Step 16

Refer to PROCEDURE - Step 17

Refer to PROCEDURE - Step 18
