Installation [09/2020 - ]: Procedure

INSTALL ACCELERATION SENSOR ASSEMBLY

Install the acceleration sensor assembly with the bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

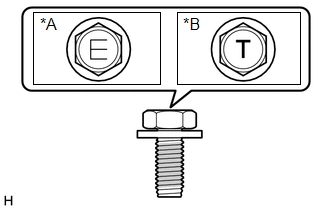

*A	for Type A
*B	for Type B

for Type A

Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

for Type B

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

NOTE:

Avoid any impact to the acceleration sensor assembly.
Do not drop the acceleration sensor assembly. If it is dropped, replace it with a new one.
There are 2 types of bolts and the tightening torque depends on the type of bolt used as shown in the illustration. Therefore, confirm the tightening torque before installing the bolt.

INSTALL LUGGAGE COMPARTMENT TRIM COVER RH
See step 2
INSTALL FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 6
INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 2
INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 12
INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 13
INSTALL LUGGAGE COMPARTMENT DOOR STRIKER COVER
Refer to PROCEDURE - Step 14
INSTALL DECK SIDE TRIM BOX RH
Refer to PROCEDURE - Step 15
INSTALL DECK SIDE TRIM BOX LH
Refer to PROCEDURE - Step 16
INSTALL SPARE WHEEL COVER TRAY RH
Refer to PROCEDURE - Step 17
INSTALL SPARE WHEEL COVER TRAY LH
Refer to PROCEDURE - Step 18
INSTALL LUGGAGE COMPARTMENT FLOOR MAT
Refer to PROCEDURE - Step 19
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [09/2020 - 11/2021] , or refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
