Parts Location [09/2015 - ]: Illustration

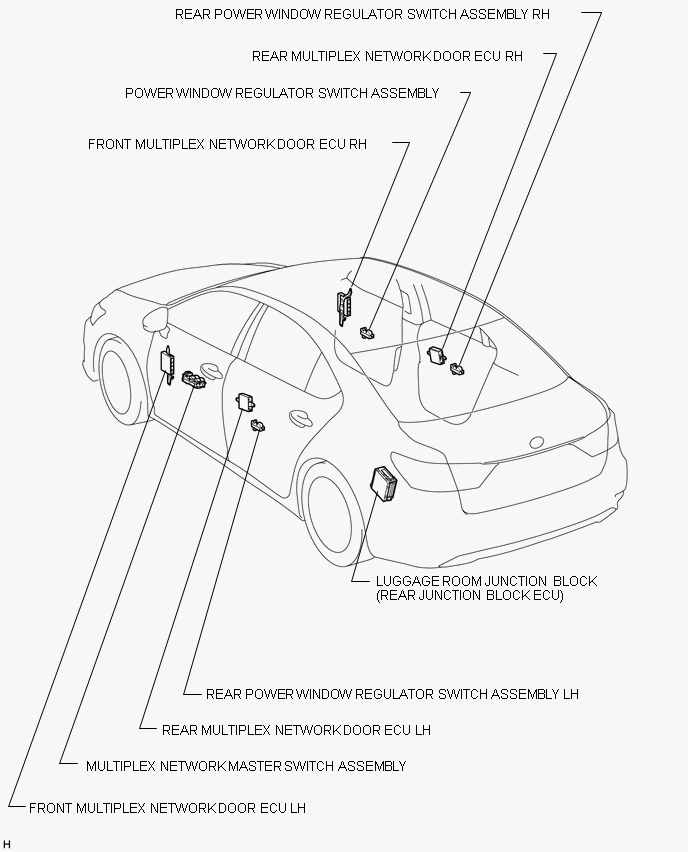

Fig 1: Power Window Control System Replacement Components (1 Of 4)
GTY403628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

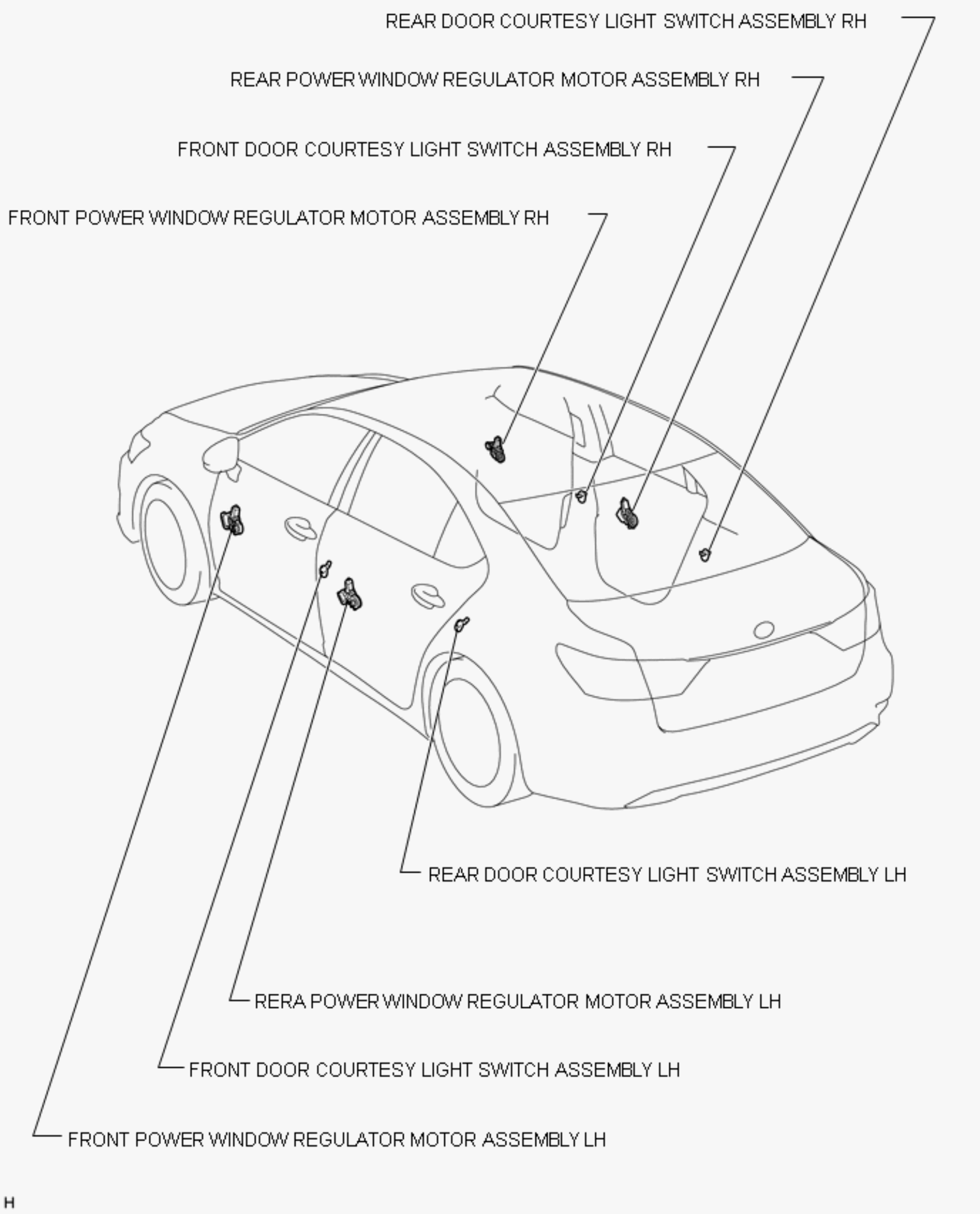

Fig 1: Power Window Control System Replacement Component (2 Of 4)
GTY673803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Power Window Control System replacement Components (3 Of 4)
GTY404432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

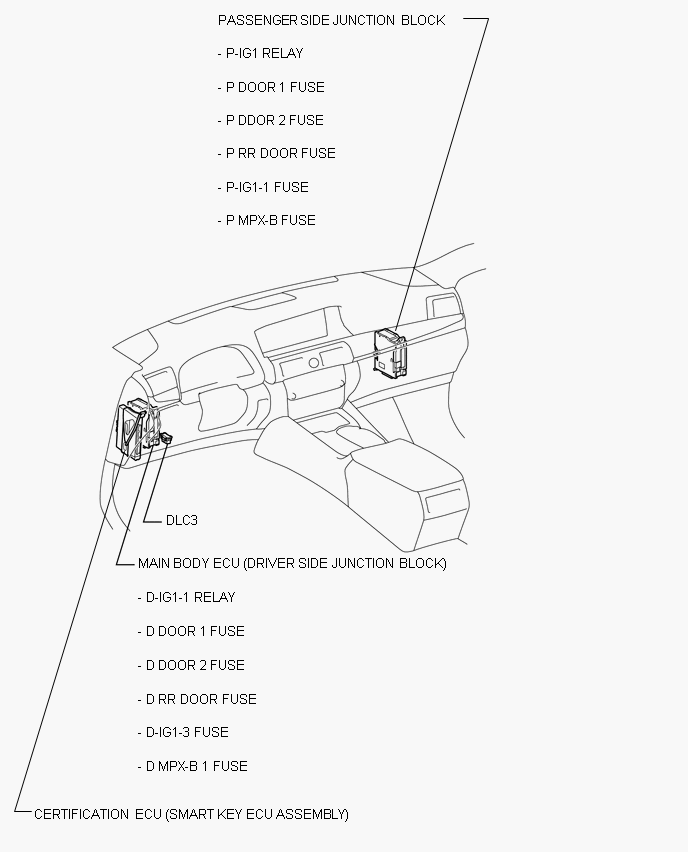

Fig 1: Power Window Control System Replacement Component (4 Of 4)
GTY670047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
