Installation [09/2015 - ]: Procedure

  1. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
    1. Install the multiplex network master switch assembly with the 3 screws.

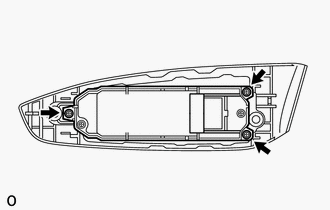

      GTY684161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.

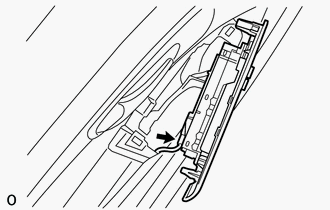

      GTY665349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 2 clips to install the armrest base panel assembly with the 2 clips.

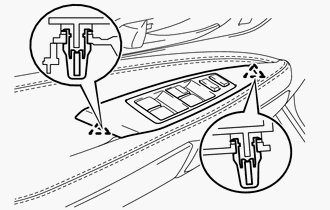

      GTY654065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
