Installation [09/2015 - ]: Procedure

INSTALL NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET

Install the 2 brackets with the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

INSTALL BRAKE CONTROL POWER SUPPLY ASSEMBLY

Connect the connector to the brake control power supply.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the brake control power supply with the 3 nuts.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

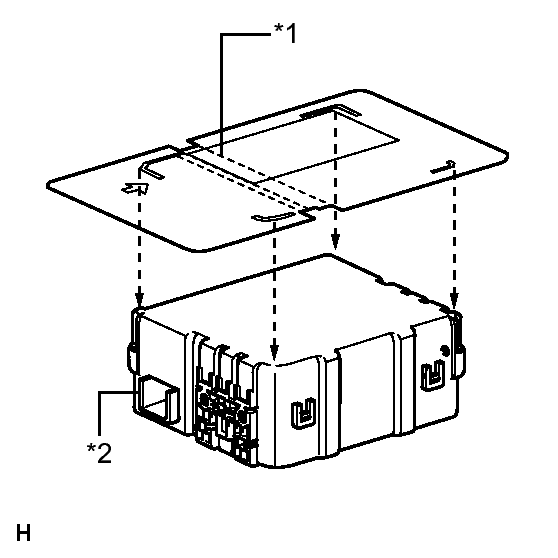

INSTALL BRAKE CONTROL POWER SUPPLY COVER

If the brake control power supply is replaced, install a new cover as follows:

TEXT IN ILLUSTRATION

*1	Double-sided Tape
*2	Connector

Peel off the peeling paper of the double-sided tape.
Place the cover so that the 4 corner lines on the cover align with the corners of the brake control power supply, and so that the cover arrow is above the connector.

INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH
(Refer to INSTALLATION [09/2015 - ] )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
INSTALL COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 17
CHECK AND CLEAR DTC
(Refer to DTC CHECK / CLEAR [09/2015 - ] )
