Removal [09/2015 - ]: Procedure
- REMOVE COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 2
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
- REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH
(Refer to REMOVAL [09/2015 - ] )
- REMOVE BRAKE CONTROL POWER SUPPLY COVER NOTE:
Do not remove the cover if planning to reuse the brake control power supply.

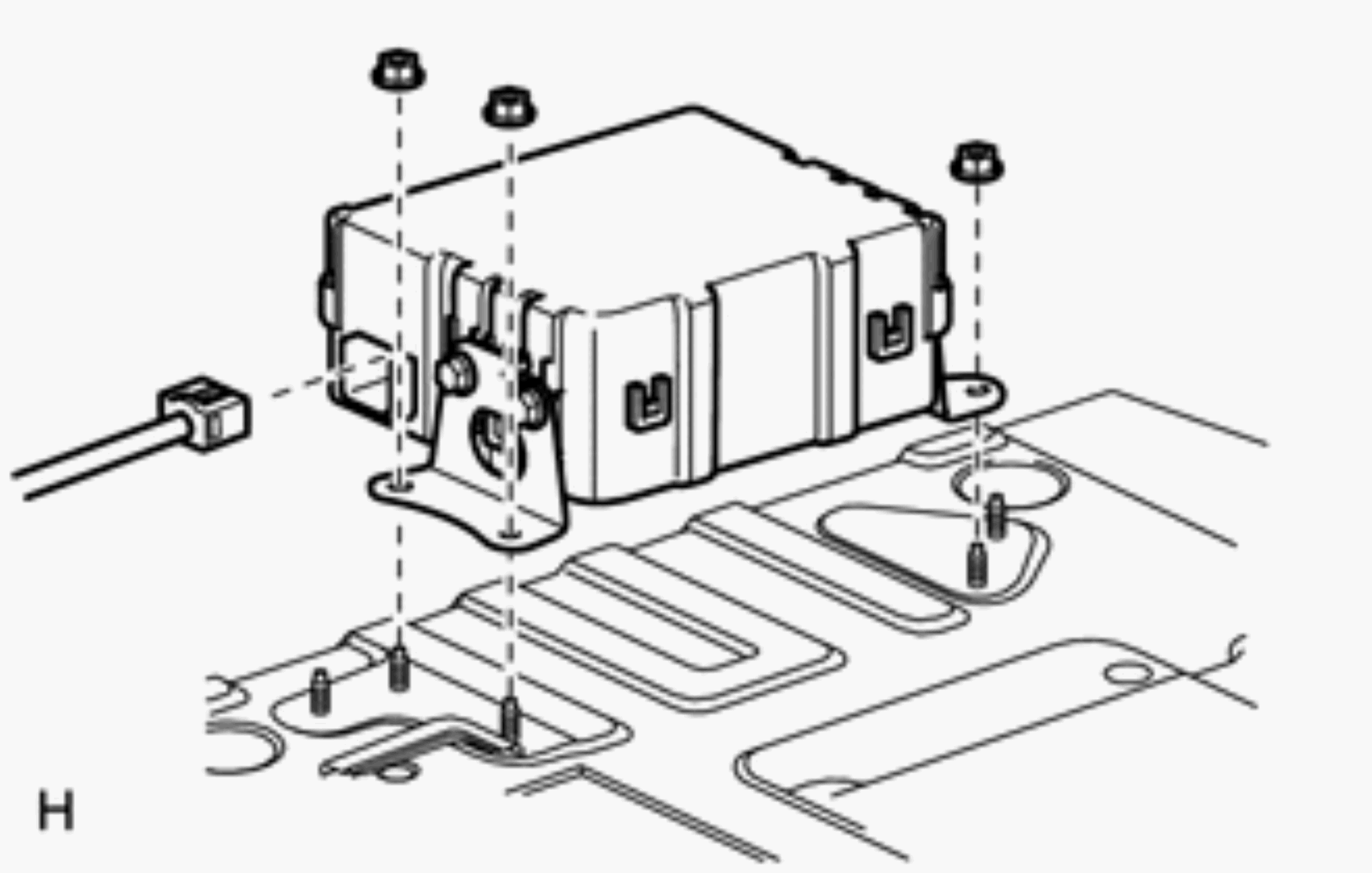

- REMOVE BRAKE CONTROL POWER SUPPLY ASSEMBLY WARNING:
Immediately after removing the brake control power supply from the vehicle, there may be an electrical charge left in the internal capacitor. If planning to inspect the inside of the brake control power supply, leave it as is for more than 24 hours (to discharge it) after removing it from the vehicle. Then perform the inspection.

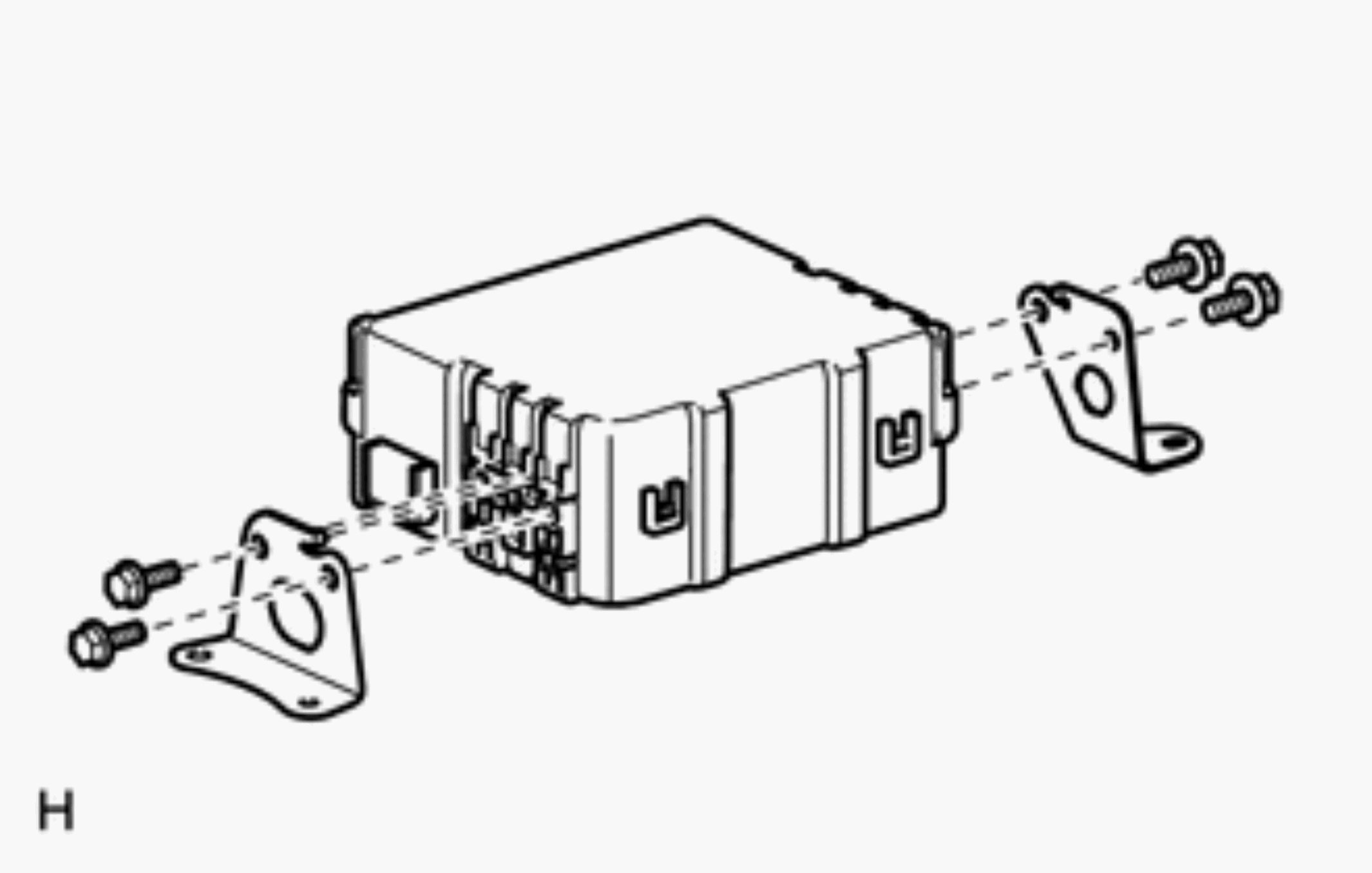

- REMOVE NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET
