Installation [09/2015 - ]: Procedure
- INSTALL FRONT AXLE HUB SUB-ASSEMBLY (FRONT SPEED SENSOR)
HINT:
The front speed sensor is a component of the front axle hub sub-assembly. If the sensor malfunctions, replace the front axle hub sub-assembly.
- Install the front axle hub (Refer to INSTALLATION [09/2015 - ] ).
- CHECK FRONT AXLE HUB BEARING LOOSENESS
Refer to PROCEDURE - Step 4
- CHECK FRONT AXLE HUB RUNOUT
Refer to PROCEDURE - Step 5
- INSTALL FRONT DISC (for 6-Pot Caliper)
Refer to PROCEDURE - Step 1
- INSTALL FRONT DISC (except 6-Pot Caliper)
Refer to PROCEDURE - Step 1
- CONNECT FRONT DISC BRAKE CALIPER ASSEMBLY (for 6-Pot Caliper)
Refer to PROCEDURE - Step 2
- CONNECT FRONT DISC BRAKE CALIPER ASSEMBLY (except 6-Pot Caliper)
Refer to PROCEDURE - Step 2
- INSTALL SKID CONTROL SENSOR WIRE

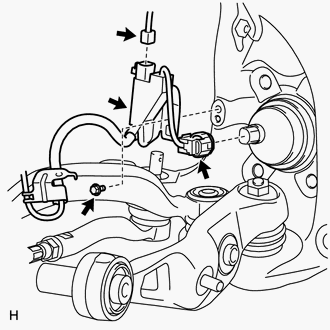

- Connect the connector to the front speed sensor.
- Install the sensor clamp with the bolt.
Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
- Connect the pad wear indicator connector.

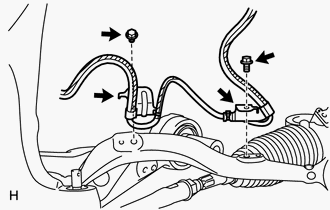

- Install the 2 sensor clamps with the 2 bolts.
Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
NOTE:Do not twist the sensor wire when installing the clamps.
- Install the sensor clamp with the bolt.
Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
NOTE:Do not twist the sensor wire when installing the clamp.

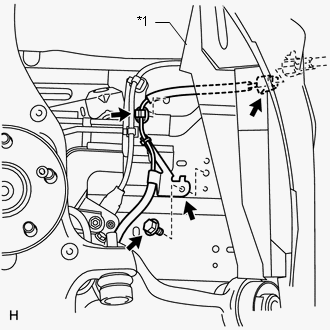

TEXT IN ILLUSTRATION*1 Front Fender Liner - Attach the sensor clip.
- Connect the sensor connector.
- Connect the front fender liner.
- Connect the connector to the front speed sensor.
- INSTALL FRONT WHEEL
Torque: 140 N*m (1428 kgf*cm, 103 ft.*lbf)
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
- INSTALL COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 17
- CHECK SPEED SENSOR SIGNAL
(Refer to TEST MODE PROCEDURE [09/2015 - ] )
