Components [09/2015 - 09/2016]: Illustration

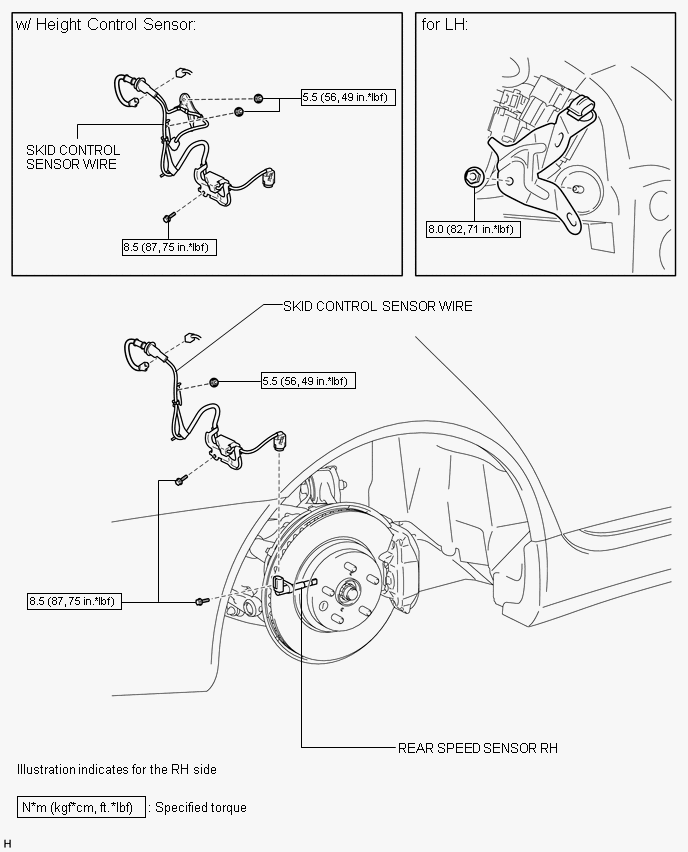

Fig 1: Rear Speed Sensor With Torque Specifications (RH)
GTY655872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
