Inspection [09/2015 - ]: Procedure

  1. CHECK SKID CONTROL BUZZER ASSEMBLY

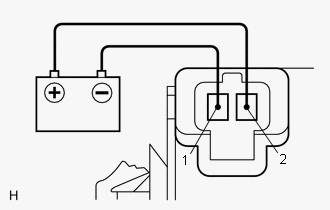

    1. Apply negative battery voltage to terminal 1, and positive battery voltage to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.
      GTY635275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      Skid control buzzer sounds.

      If the result is not as specified, replace the skid control buzzer assembly.
