Installation [09/2015 - ]: Procedure

INSTALL SKID CONTROL BUZZER ASSEMBLY

NOTE:

If the buzzer connector is connected with the buzzer installed to the vehicle, the clamp of the buzzer may be damaged. Make sure to install the buzzer according to the procedures below.

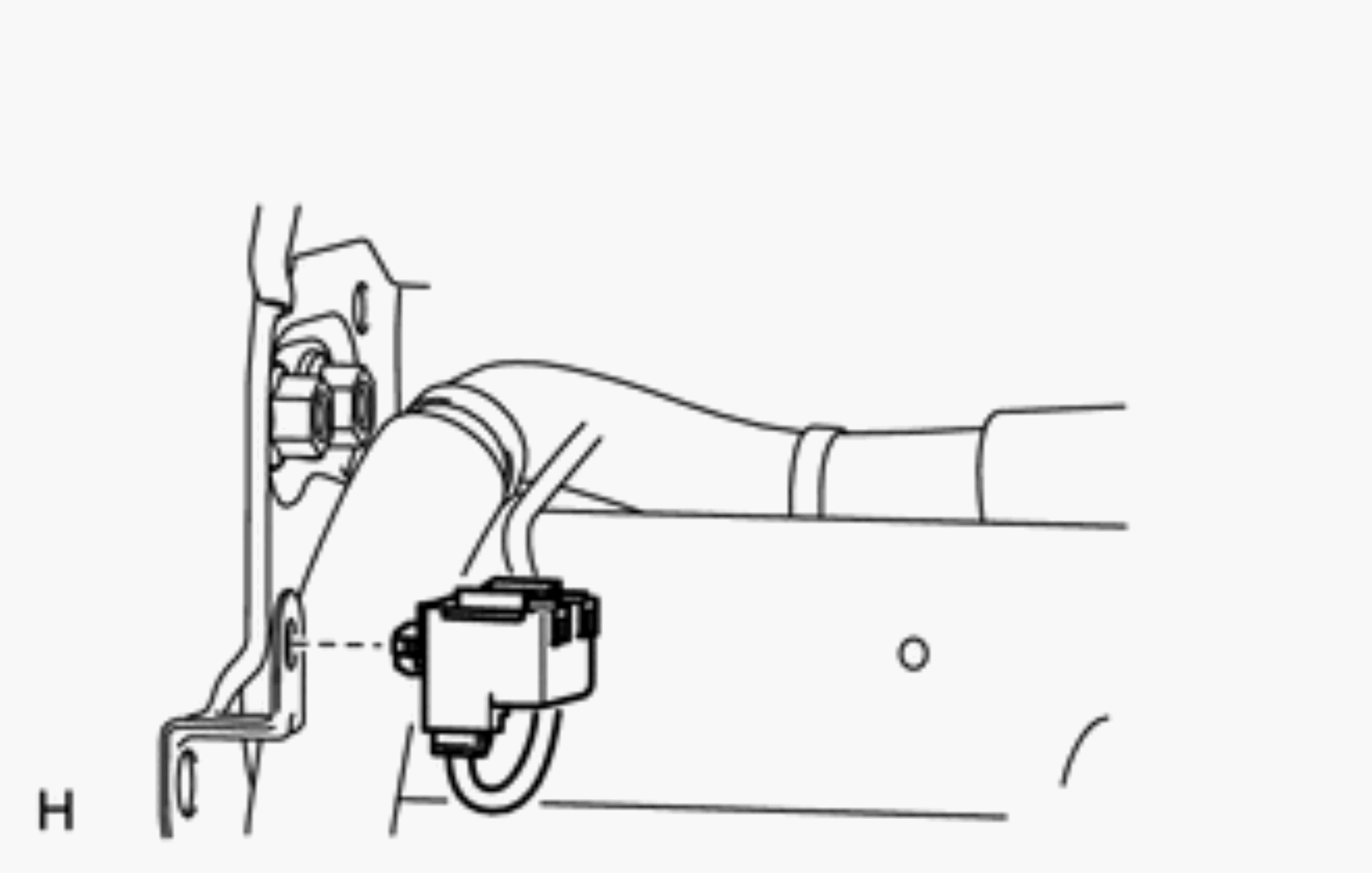

Connect the connector.

Attach the clamp and install the buzzer to the extension panel.

INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
(Refer to INSTALLATION [09/2015 - ] )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
INSTALL COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 17
