Removal [09/2015 - ]: Procedure
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE ENGINE ROOM SIDE COVER LH
Refer to PROCEDURE - Step 6
- REMOVE COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 2
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
- REMOVE SKID CONTROL ECU

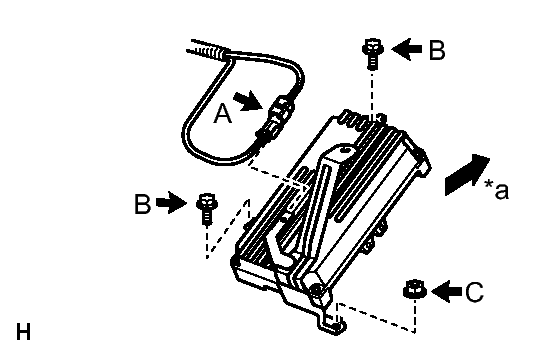

- Disconnect the short connector for the brake stroke simulator (labeled A) from the bracket of the skid control ECU.TEXT IN ILLUSTRATION
*a Front - Remove the 2 bolts (labeled B), nut (labeled C) and ECU.

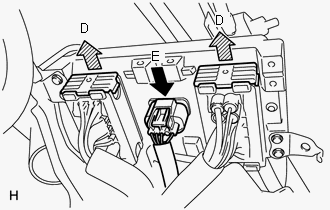

- Pull the 2 lock levers upward to release the locks and disconnect the 2 connectors (labeled D).
- Disconnect the connector (labeled E).
- Disconnect the short connector for the brake stroke simulator (labeled A) from the bracket of the skid control ECU.
- REMOVE SKID CONTROL ECU BRACKET
