Installation [09/2015 - ]: Procedure

INSTALL STEERING ANGLE SENSOR

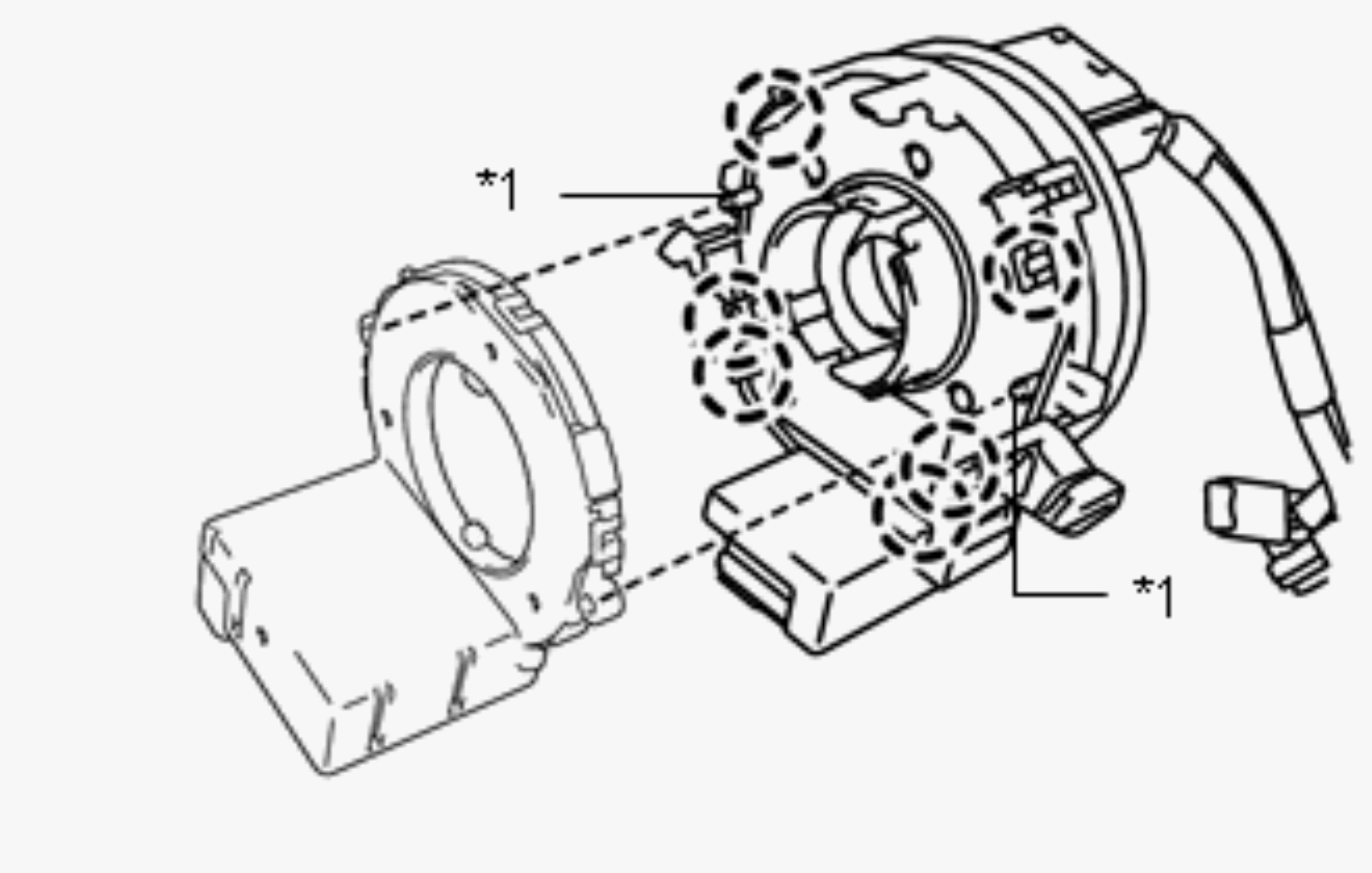

Align the pins on the spiral cable with the installation holes on the steering sensor.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

INSTALL SPIRAL CABLE SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
INSTALL STEERING COLUMN COVER
1. w/ VGRS:
  (Refer to INSTALLATION [09/2015 - ] )
2. w/o VGRS:
  (Refer to INSTALLATION [09/2015 - ] )
ADJUST SPIRAL CABLE SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
INSTALL STEERING WHEEL ASSEMBLY
(Refer to INSTALLATION [09/2015 - ] )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
- Reset the AUTO TILT AWAY function setting to the previous condition by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [09/2015 - ] ).
- When reconnecting the cable to the negative battery terminal after installing the steering sensor, check that the front tires and steering wheel are kept aligned straight ahead before and after connecting the cable to the negative battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
INSTALL COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 17
INSPECT STEERING PAD
Refer to PROCEDURE - Step 5
CHECK SRS WARNING LIGHT
(Refer to DIAGNOSIS SYSTEM [09/2015 - ] )
