Installation [09/2015 - ]: Procedure

  1. INSTALL GENERATOR ASSEMBLY

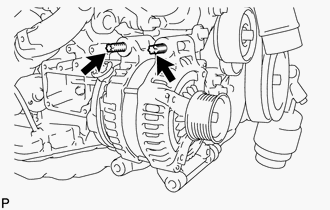

    GTY654376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using an E8 "TORX" socket wrench, set the generator with the 2 stud bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. Install the generator with the 2 bolts and 2 nuts.

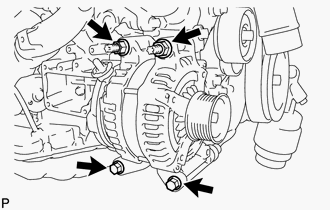

      GTY654378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

    3. Connect the generator connector.

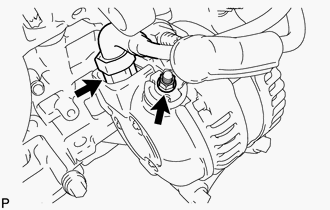

      GTY654377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the harness to the +B terminal with the nut.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  2. INSTALL V-RIBBED BELT

    Refer to PROCEDURE - Step 1

  3. INSTALL INTAKE AIR CONNECTOR PIPE

    Refer to PROCEDURE - Step 13

  4. INSTALL NO. 2 ENGINE UNDER COVER (for 2WD)

    Refer to PROCEDURE - Step 101

  5. INSTALL NO. 2 ENGINE UNDER COVER (for AWD)

    Refer to PROCEDURE - Step 115

  6. INSTALL FRONT SUSPENSION MEMBER PROTECTOR LOWER (for 2WD)

    Refer to PROCEDURE - Step 100

  7. INSTALL FRONT SUSPENSION MEMBER PROTECTOR LOWER (for AWD)

    Refer to PROCEDURE - Step 111

  8. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 13

  9. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH (for AWD)

    Refer to PROCEDURE - Step 15

  10. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH (for AWD)

    Refer to PROCEDURE - Step 16

  11. INSTALL NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 3

  12. INSTALL AIR CLEANER INLET COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 7

  13. INSTALL V-BANK COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 8

  14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  15. INSTALL COWL TOP VENTILATOR LOUVER RH

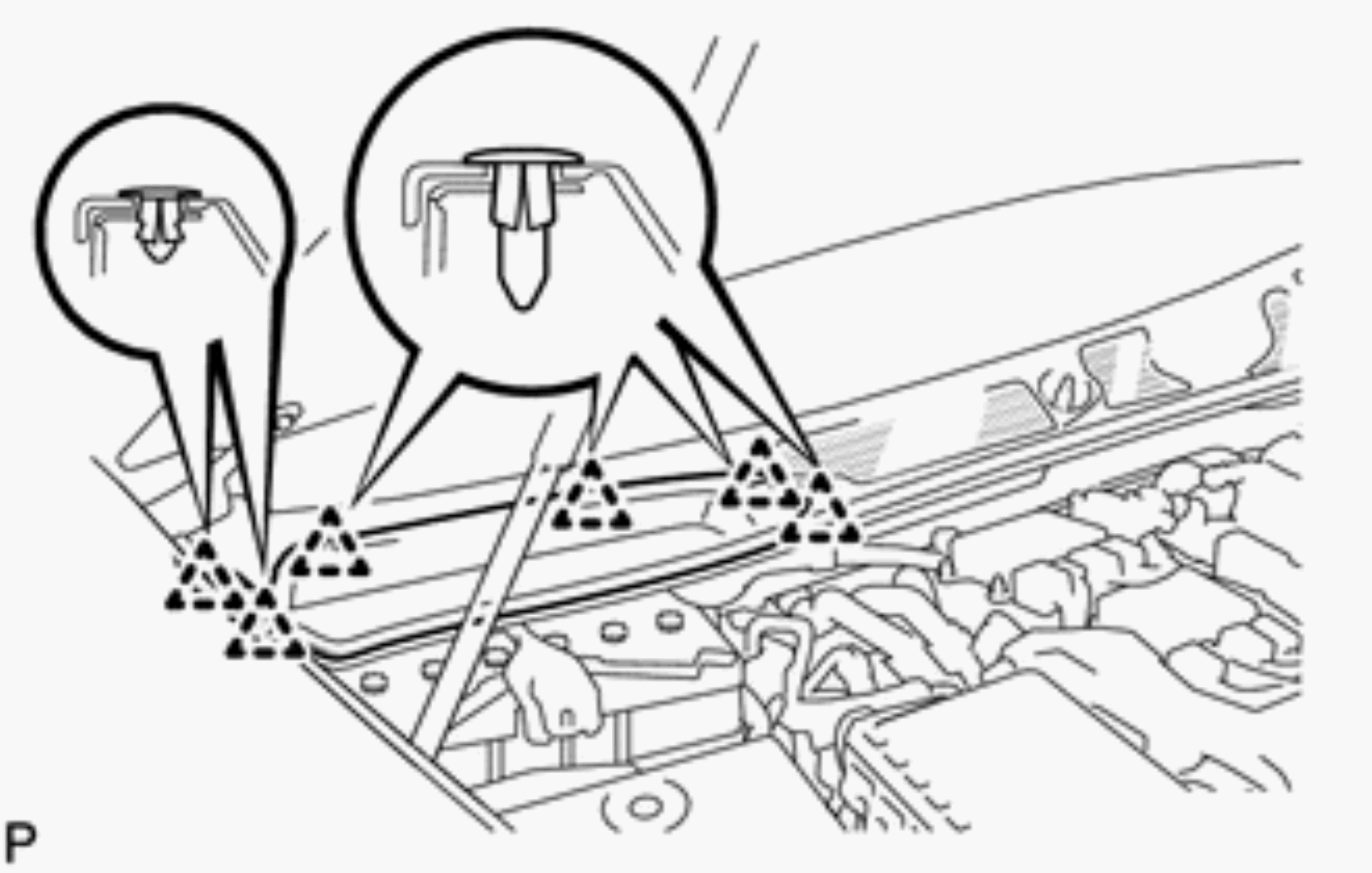

    GTY615954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the 6 clips and cowl top ventilator louver RH.
      NOTE:

      If the cowl top ventilator louver RH is not properly installed, water may leak into the engine room and cause malfunctions. Therefore, make sure the cowl top ventilator louver RH is installed properly.
