Reassembly [09/2015 - ]: Procedure

INSTALL FUEL PRESSURE REGULATOR ASSEMBLY

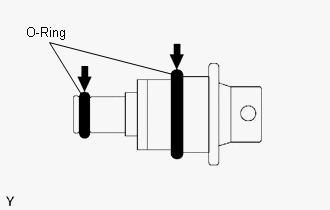

Apply a light coat of gasoline to 2 new O-rings, and install them onto the fuel pressure regulator.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

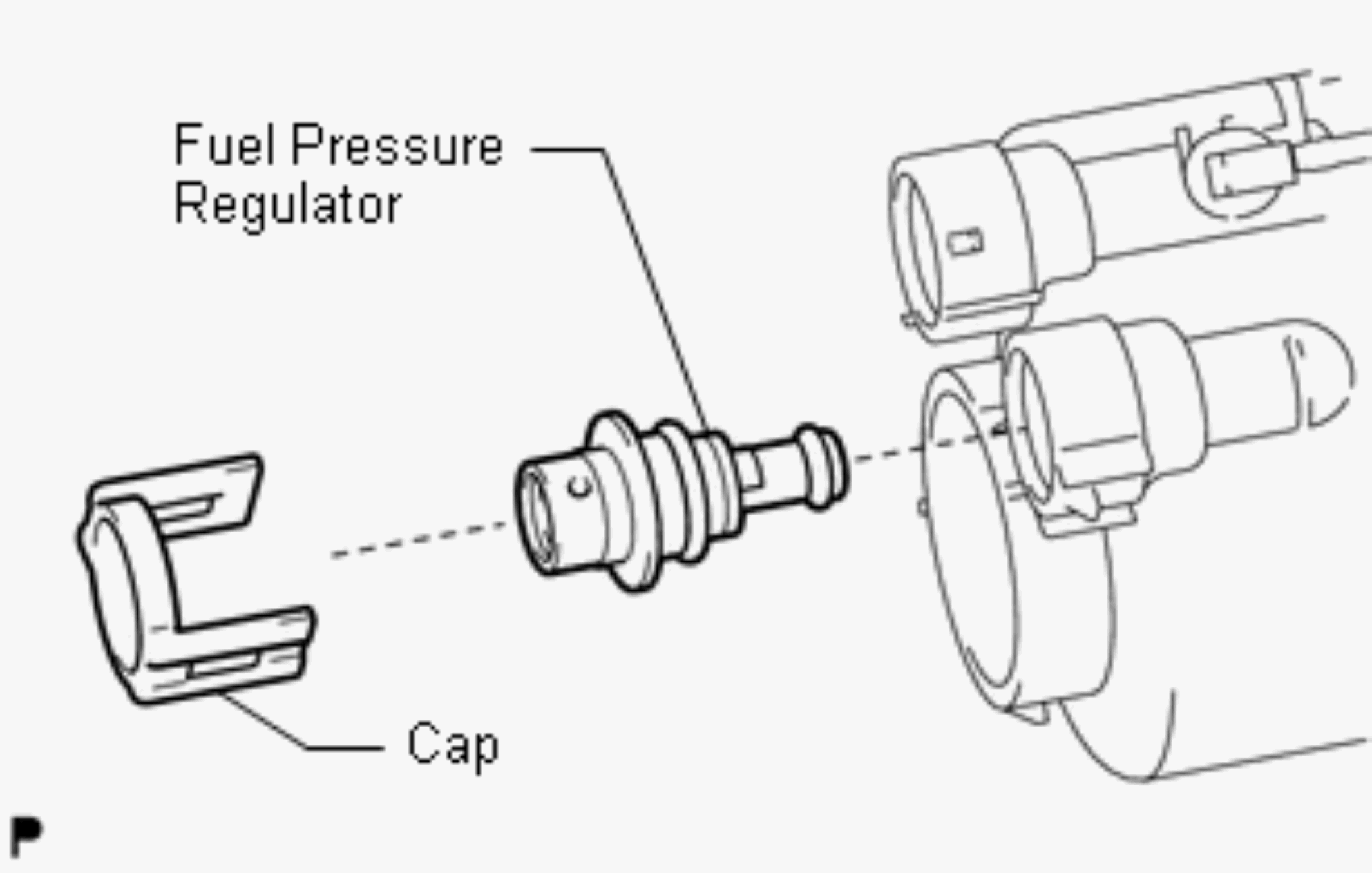

Install the fuel pressure regulator to the fuel filter.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Attach the 2 claws of the fuel filter and install the cap.
NOTE:
- Make sure the O-rings are not cut or pinched during the installation.
- Attach the claws securely.

INSTALL JET PUMP

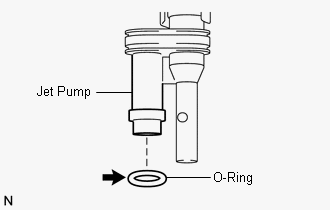

Apply gasoline to a new O-ring and install it to the jet pump.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

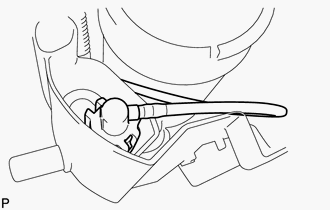

Install the jet pump to the sub-tank as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL FUEL FILTER

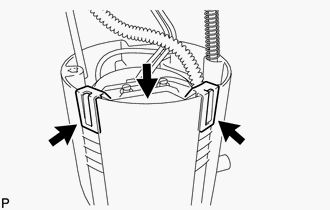

Install the fuel filter to the sub-tank and attach the 2 claws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL FUEL SUCTION PLATE SUB-ASSEMBLY

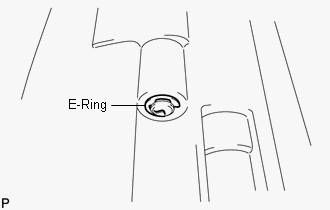

Install a new E-ring.

Connect the fuel pump connector to the fuel suction plate.

INSTALL FUEL SENDER GAUGE ASSEMBLY

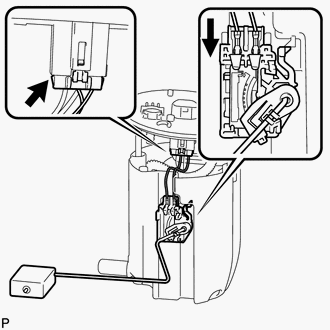

Set the fuel sender gauge to the fuel sub-tank. Then slide the sender gauge downward to install it.

Connect the fuel sender gauge connector to the fuel suction plate.
NOTE:
Do not touch the resistance plate or contacts of the fuel sender gauge assembly.
