Installation [09/2015 - ]: Procedure
- INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY
HINT:
Perform "Inspection After Repairs" after replacing the fuel pump (Refer to INITIALIZATION [09/2015 - ] ).
- Apply a light coat of gasoline to a new gasket, and install it to the fuel tank.
- Connect the fuel hose, and install the fuel suction with pump and gauge tube to the fuel tank.NOTE:
- Be careful not to bend the arm of the fuel sender gauge.
- When connecting the fuel hose, do not forcibly pull the hose.

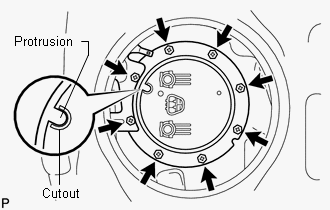

- Install the lower fuel tank protector and fuel vent tube set plate with the 8 bolts.
Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
HINT:
Align the protrusion of the set plate with the cutout of the fuel suction pump and gauge tube.

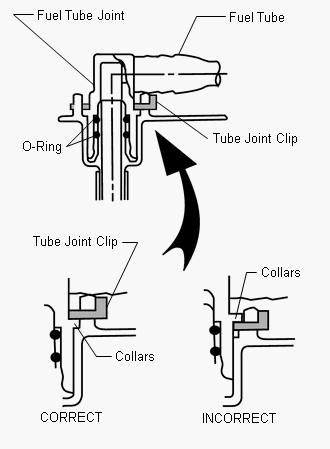

- Install the fuel tank main tube and fuel tank return vent tube with the 2 tube joint clips.NOTE:
- Check that there are no scratches or foreign objects on the connecting parts.
- Check that the fuel tube joint is inserted securely.
- Check that the tube joint clips are on the collars of the fuel tube joints.
- After installing the tube joint clips, check that the fuel tube joints have not been pulled off.
- Connect the connector.
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
- INSTALL COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 15
- INSPECT FOR FUEL LEAK
Refer to PROCEDURE - Step 1
- INSTALL REAR FLOOR NO. 2 SERVICE HOLE COVER
- Install the service hole cover with new butyl tape.
- INSTALL REAR NO. 1 SEAT ADJUSTER ASSEMBLY
- for Power Seat:
(Refer to INSTALLATION [09/2015 - ] )
- for Ottoman:
(Refer to INSTALLATION [09/2015 - ] )
- for Power Seat:
- INSTALL REAR SEAT CUSHION ASSEMBLY (for Fixed Seat Type)
(Refer to INSTALLATION [09/2015 - ] )
