Removal [09/2015 - ]: Procedure

(Refer to REMOVAL [09/2015 - ] )

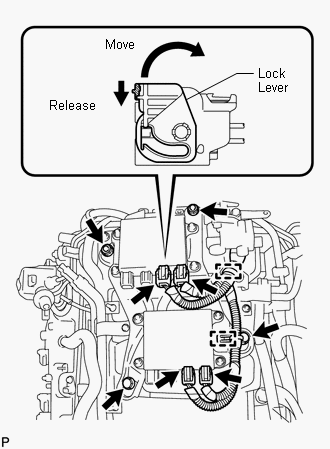

1. Disconnect the 4 injector driver connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   To disconnect the injector driver connectors, push the claw downward and move the lock lever to release the lock.

2. Disconnect the 2 wire harness clamps from injector driver bracket.

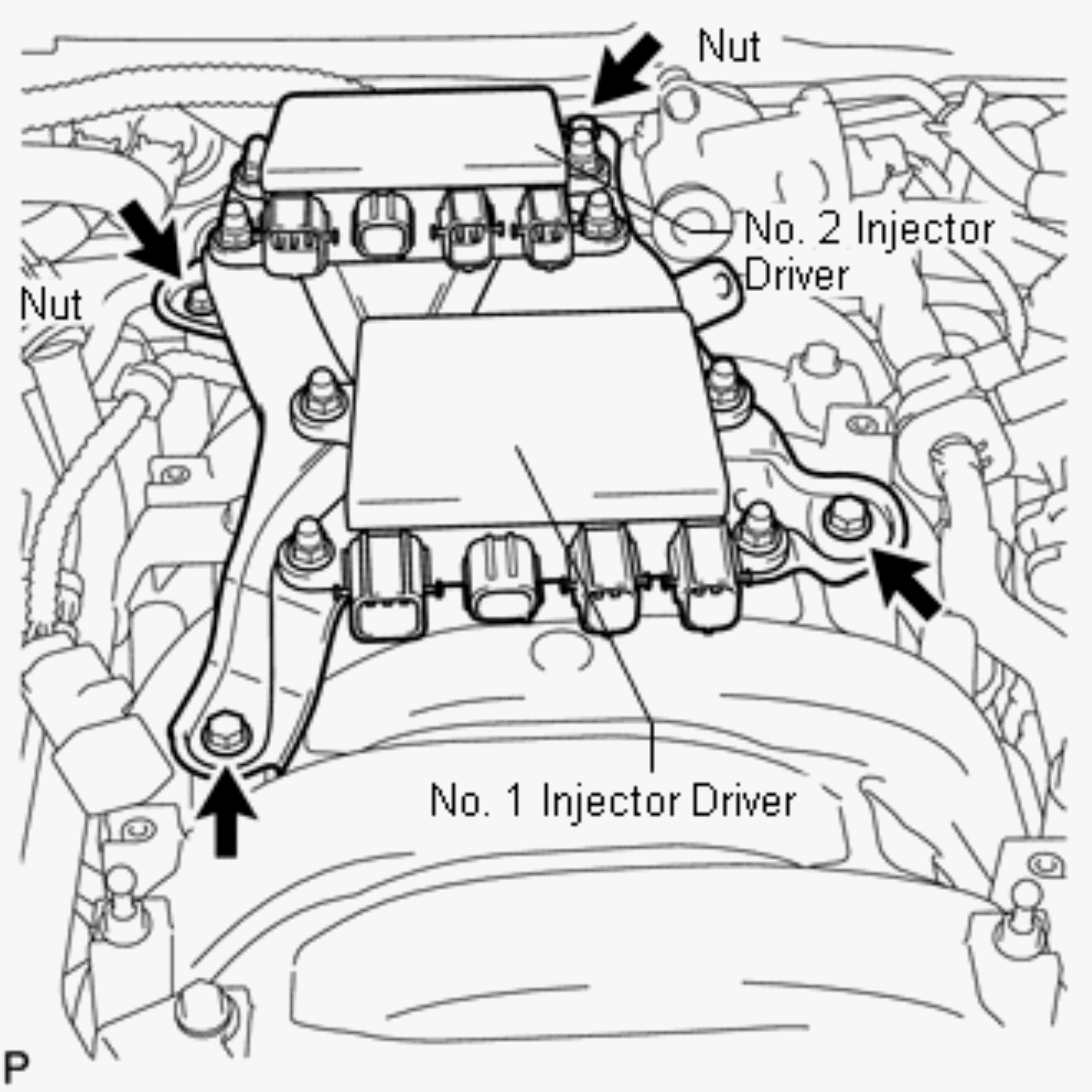

3. Remove the 2 bolts, 2 nuts and injector driver bracket together with the 2 injector drivers.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Be careful not to drop or strike the injector driver.

4. Remove the No. 1 engine cover.

1. Remove the 8 nuts and 2 injector drivers from the injector driver bracket.
