Removal [09/2015 - ]: Procedure

  1. REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY
    NOTE:

    This accelerator pedal does not require lubrication.

    Do not apply oil or other lubrication to the accelerator pedal sensor assembly.

    If applied, the accelerator pedal sensor assembly must be replaced.

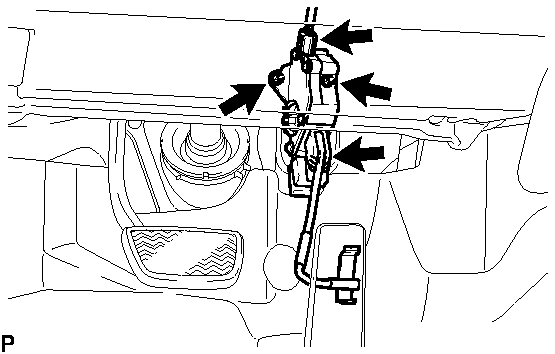

    1. Disconnect the accelerator pedal sensor connector.
      GTY399846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 nuts and accelerator pedal sensor assembly.
      NOTE:
      • Avoid physical shocks to the accelerator pedal sensor assembly.
      • Do not disassemble the accelerator pedal sensor assembly.
  2. REMOVE ACCELERATOR PEDAL

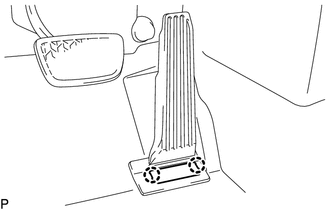

    1. Detach the 2 claws and remove the accelerator pedal pad.
      GTY461616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

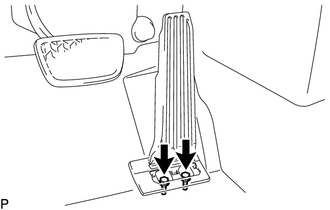

    2. Remove the 2 bolts and accelerator pedal.
      GTY461617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
