Removal [09/2015 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    See step  1

  2. REMOVE CAMSHAFT POSITION SENSOR

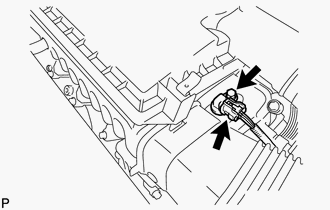

    1. Disconnect the camshaft position sensor connector.
      GTY630603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft position sensor.
