Removal [09/2015 - ]: Procedure

(Refer to REMOVAL [09/2015 - ] )

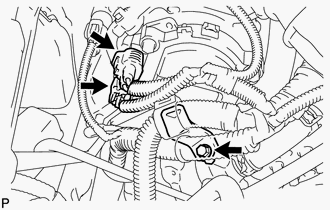

1. Disconnect the 2 camshaft timing control with EDU motor assembly RH connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the bolt and engine wire bracket.

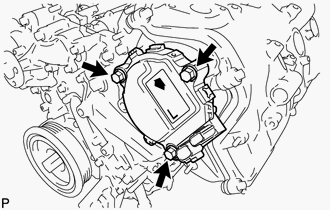

3. Remove the 3 bolts and camshaft timing control with EDU motor assembly RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not allow foreign matter to contact the oil seal face of the camshaft timing control with EDU motor assembly RH (connecting surface with timing chain cover).

4. Remove the O-ring from the timing chain cover.

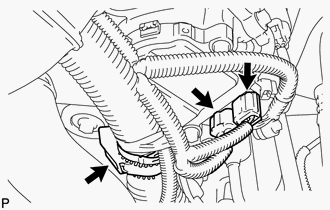

1. Disconnect the 2 camshaft timing control with EDU motor assembly LH connectors and engine wire clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

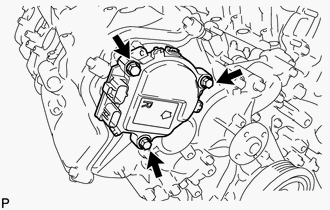

2. Remove the 3 bolts and camshaft timing control with EDU motor assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not allow foreign matter to contact the oil seal face of the camshaft timing control with EDU motor assembly LH (connecting surface with timing chain cover).

3. Remove the O-ring from the timing chain cover.
