Removal [09/2015 - ]: Procedure

  1. REMOVE NO. 2 ENGINE UNDER COVER (for 2WD)

    Refer to PROCEDURE - Step 11

  2. REMOVE NO. 2 ENGINE UNDER COVER (for AWD)

    Refer to PROCEDURE - Step 13

  3. REMOVE CRANKSHAFT POSITION SENSOR

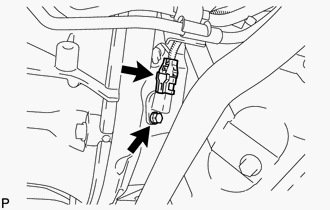

    1. Disconnect the crankshaft position sensor connector.
      GTY147509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor.
