Installation [09/2015 - ]: Procedure

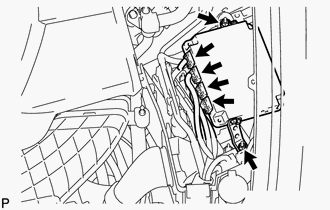

INSTALL ECM

Install the ECM with the 2 nuts.

Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

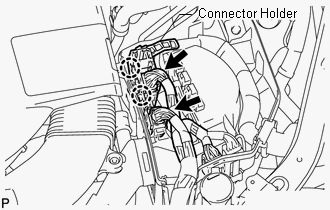

CONNECT NO. 2 CONNECTOR HOLDER

Attach the 2 claws to connect the connector holder.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL TCM

Install the TCM with the 2 nuts.

Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

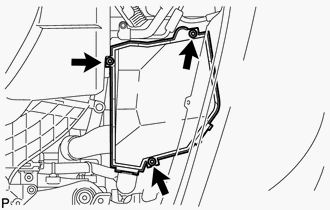

INSTALL ENGINE ROOM ECU COVER

Install the engine room ECU cover with the 3 bolts.

Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

INSTALL ENGINE ROOM SIDE COVER LH
Refer to PROCEDURE - Step 16
INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY
See step 7
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
INSTALL COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 15
PERFORM RESET MEMORY
NOTE:
Perform the RESET MEMORY (AT initialization) when replacing the automatic transmission assembly, engine assembly or ECM.
- for 2WD: (Refer to INITIALIZATION [09/2015 - ] )
- for AWD: (Refer to INITIALIZATION [09/2015 - ] )
HINT:

Initialization cannot be completed by only removing the battery.
SHIFT CONTROL SYNCHRONIZATION (for Sport Package)
Refer to PROCEDURE - Step 2
