Removal [09/2015 - ]: Procedure

  1. DISCHARGE FUEL SYSTEM PRESSURE

    (Refer to PRECAUTION [09/2015 - ] )

  2. REMOVE INTAKE MANIFOLD

    (Refer to REMOVAL [09/2015 - ] )

  3. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  4. REMOVE NO. 2 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  5. REMOVE NO. 2 ENGINE COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  6. REMOVE NO. 4 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  7. REMOVE SEPARATOR CASE

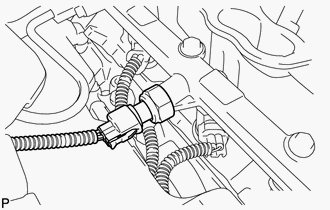

    1. Disconnect the fuel pressure sensor connector.
      GTY685713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

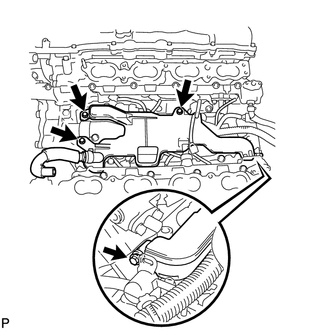

    2. Remove the 4 bolts and separator case.
      GTY512895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE KNOCK SENSOR

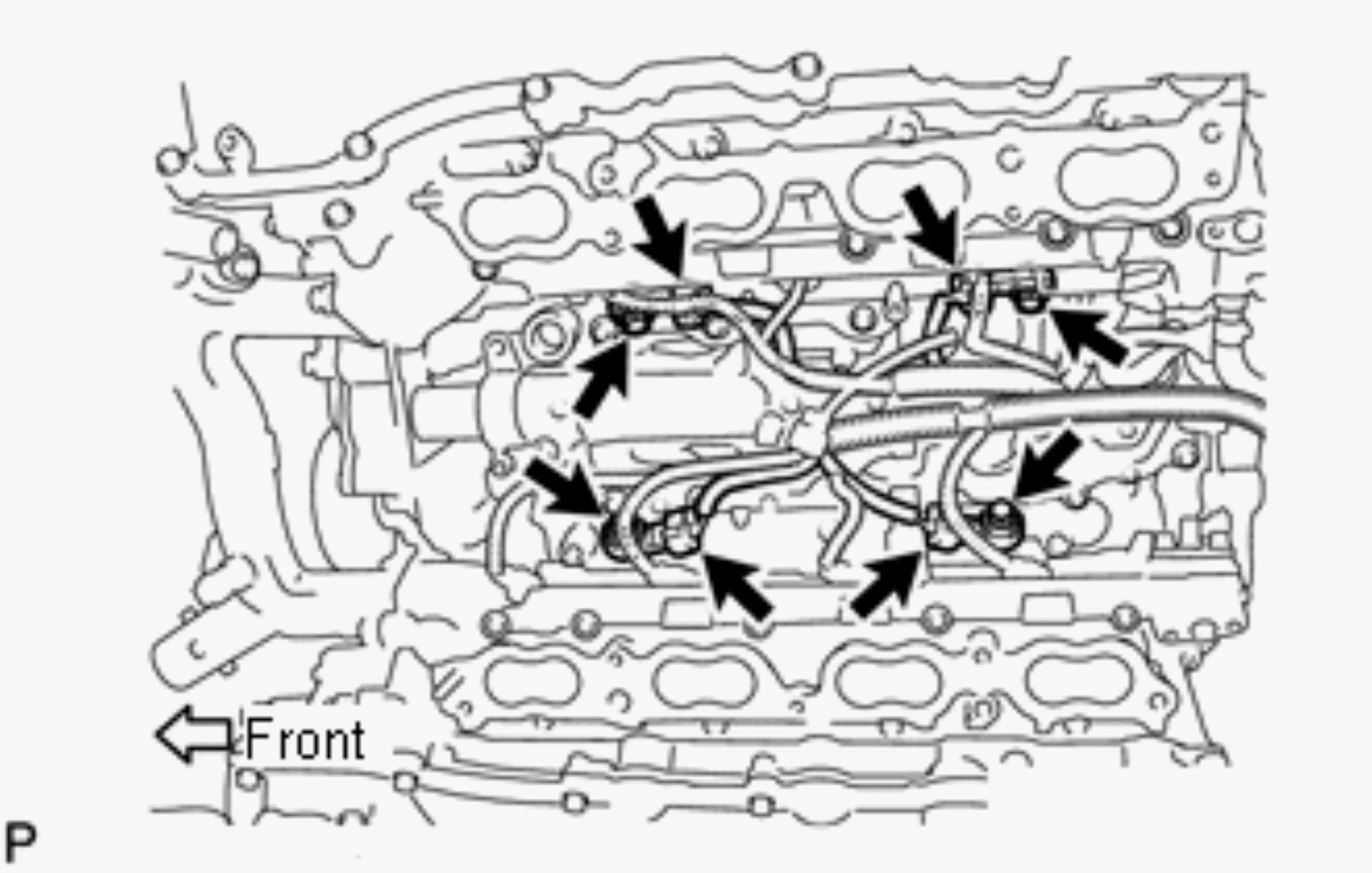

    1. Disconnect the 4 knock sensor connectors.
      GTY614512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and 4 knock sensors.
