Installation [09/2015 - ]: Procedure
- INSTALL MASS AIR FLOW METER SUB-ASSEMBLY (for Bank 1)

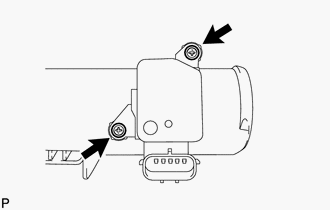

- Install the mass air flow meter sub-assembly with the 2 screws.
Torque: 1.0 N*m (10 kgf*cm, 9 in.*lbf)
NOTE:- If the screw is tightened excessively, the screw hole may be damaged.
- Make sure the O-ring is not pinched.
HINT:
Perform "Inspection After Repairs" after replacing the mass air flow meter sub-assembly (Refer to INITIALIZATION [09/2015 - ] ).
- Install the mass air flow meter sub-assembly with the 2 screws.
- INSTALL MASS AIR FLOW METER SUB-ASSEMBLY (for Bank 2)

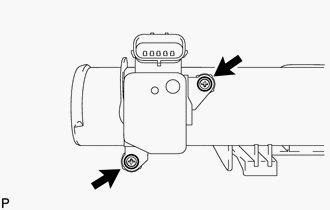

- Install the mass air flow meter sub-assembly with the 2 screws.
Torque: 1.0 N*m (10 kgf*cm, 9 in.*lbf)
NOTE:- If the screw is tightened excessively, the screw hole may be damaged.
- Make sure the O-ring is not pinched.
HINT:
Perform "Inspection After Repairs" after replacing the mass air flow meter sub-assembly (Refer to INITIALIZATION [09/2015 - ] ).
- Install the mass air flow meter sub-assembly with the 2 screws.

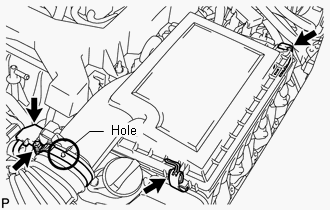

- INSTALL AIR CLEANER CAP SUB-ASSEMBLY LH

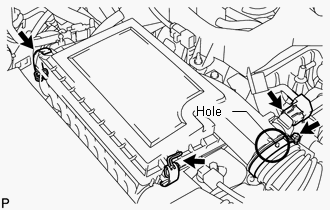

- INSTALL AIR CLEANER CAP SUB-ASSEMBLY RH
- INSTALL V-BANK COVER SUB-ASSEMBLY
See step 8
