Removal [09/2015 - ]: Procedure

1. Using both hands, lift the rear side of the cover upwards to detach the 4 clips labeled B. Then slide the cover toward the front of the vehicle to detach the 2 clips labeled A and remove the V-bank cover sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • The V-bank cover sub-assembly may be damaged if its front and rear are lifted at the same time.
   • When detaching the clips labeled A, be sure to slide the cover toward the front of the vehicle.

1. Remove the 5 clips labeled A.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Lift up the air cleaner inlet cover sub-assembly to detach the 4 clips labeled B, and remove the air cleaner inlet cover sub-assembly.

1. Remove the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Hold the No. 1 air cleaner inlet by the protrusions labeled A and labeled B, and detach the connections.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

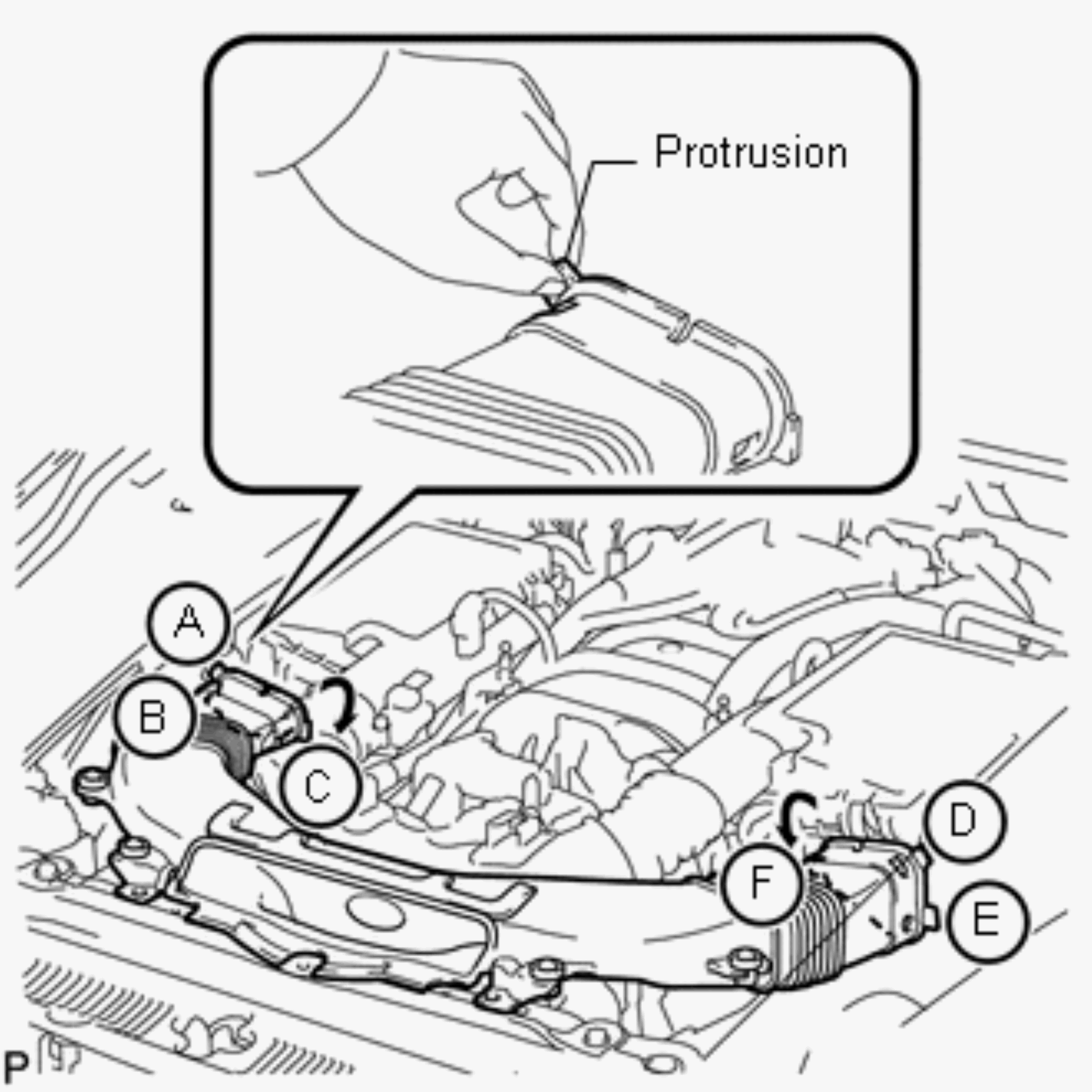

3. Rotate the No. 1 air cleaner inlet as shown in the illustration to detach the protrusion labeled C.
4. Hold the No. 1 air cleaner inlet by the protrusions labeled D and labeled E, and detach the connections.
5. Rotate the No. 1 air cleaner inlet as shown in the illustration to detach the protrusion labeled F.

Refer to PROCEDURE - Step 7

Refer to PROCEDURE - Step 8

Refer to PROCEDURE - Step 6

Refer to PROCEDURE - Step 7

Refer to PROCEDURE - Step 9

1. Disconnect the throttle motor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 4 bolts and throttle body assembly.
3. Disconnect the No. 4 and No. 5 water by-pass hoses from the throttle body assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Remove the gasket from the intake manifold.
