Components [09/2015 - ]: Illustration

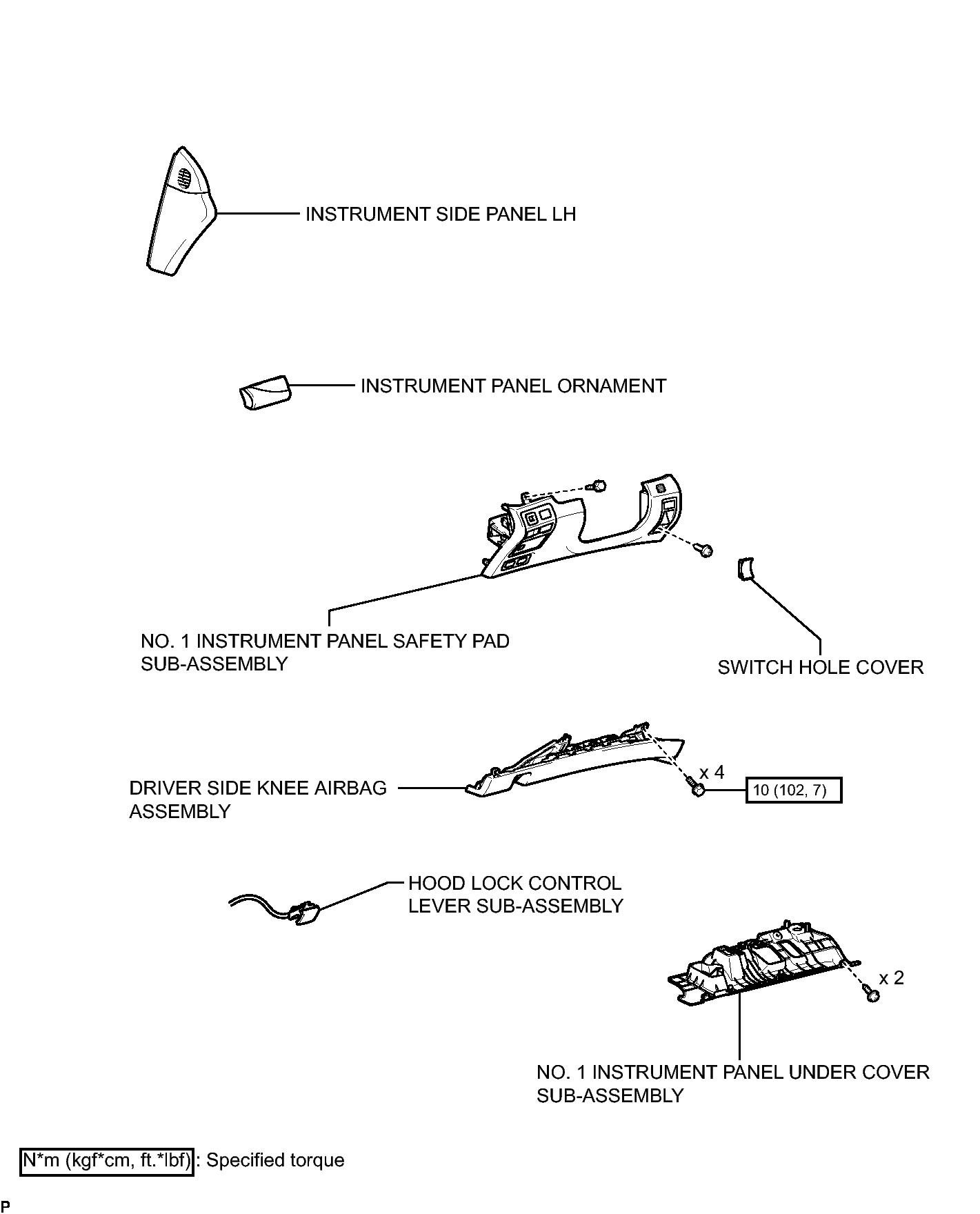

Fig 1: Identifying Driver Monitor ECU Replacement Components With Torque Specifications (1 Of 2)
GTY411352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

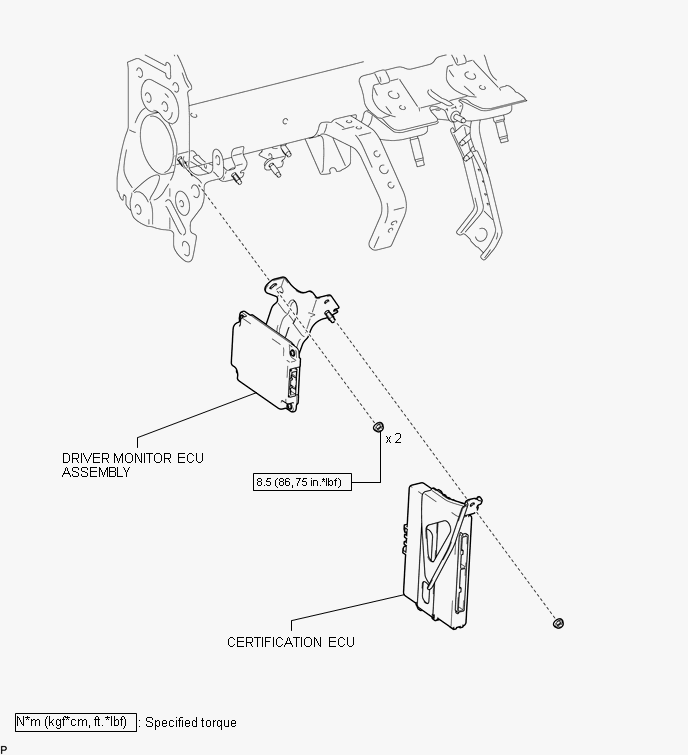

Fig 1: Identifying Driver Monitor ECU Replacement Components With Torque Specifications (2 Of 2)
GTY405582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
