Components [09/2015 - ]: Illustration

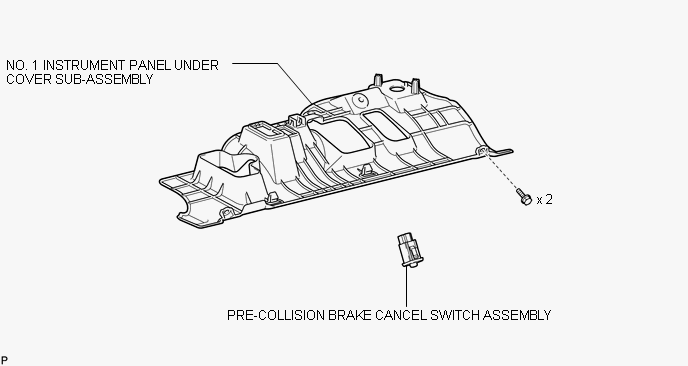

Fig 1: Pre-Collision Brake Cancel Switch Replacement Components
GTY285023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
