Removal [09/2015 - ]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).
- REMOVE COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 1
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
- REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE ROPE HOOK ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE ROPE HOOK
Refer to PROCEDURE - Step 5
- REMOVE DECK TRIM SIDE BOARD LH
Refer to PROCEDURE - Step 7
- REMOVE DECK TRIM SIDE BOARD RH
Refer to PROCEDURE - Step 6
- REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 8
- REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM HOOK (w/o Rear Cooler)
Refer to PROCEDURE - Step 9
- REMOVE NO. 1 COOLER COVER (w/ Rear Cooler)
Refer to PROCEDURE - Step 14
- REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 11
- REMOVE REAR FLOOR FINISH PLATE
Refer to PROCEDURE - Step 12
- REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH
Refer to PROCEDURE - Step 13
- REMOVE SEAT BELT CONTROL ECU

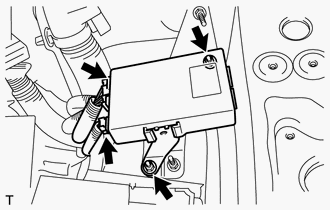

- Disconnect the 2 connectors.
- Remove the 2 nuts and seat belt control ECU.
