Removal [09/2015 - ]: Procedure

  1. REMOVE COWL TOP VENTILATOR LOUVER RH

    Refer to PROCEDURE - Step 2

  2. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  4. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH

    (Refer to REMOVAL [09/2015 - ] )

  5. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH

    (Refer to PROCEDURE - Step 14 )

  6. REMOVE REAR WHEEL
  7. REMOVE SKID CONTROL SENSOR WIRE

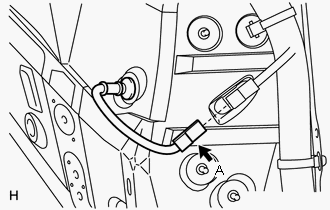

    1. for RH:
      1. Disconnect the sensor connector.
        GTY640077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for LH:
      1. Disconnect the sensor connector.
        GTY623514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Detach the skid control sensor wire.
      3. Remove the nut and No. 1 skid control sensor clamp from the body.
    3. Disconnect the grommet of the speed sensor wire from the hole of the wheel house.
      GTY111337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Except for coil spring type suspension:

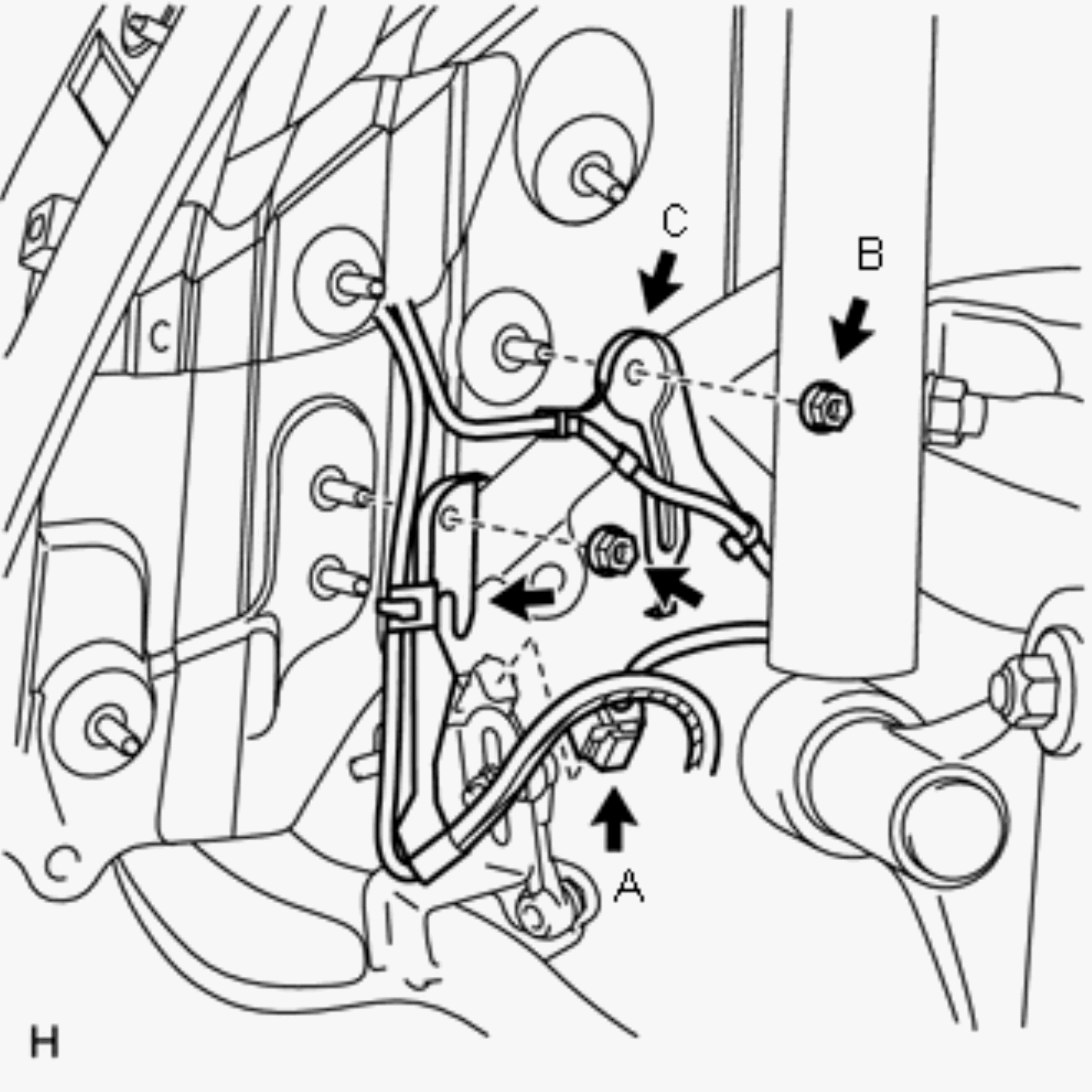

      GTY641844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the rear height control sensor connector (labeled A).
      2. Remove the nut (labeled B) and sensor clamp (labeled C).
    5. Remove the nut and sensor clamp.
    6. Disconnect the pad wear indicator connector.
      GTY620005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the bolt and sensor clamp.
    8. Disconnect the connector from the rear speed sensor.
      NOTE:
      • Be careful not to damage the speed sensor.
      • Prevent foreign matter from adhering to the speed sensor.
  8. REMOVE REAR SPEED SENSOR RH
    1. Remove the bolt and sensor.
      GTY685704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • The rear speed sensor is easily damaged. When pulling out the rear speed sensor from the rear axle hub RH, do not use excessive force to rotate and remove it.
      • Prevent foreign matter from attaching to the sensor tip.
      • Do not drop the sensor. If the sensor has been dropped, replace the sensor with a new one.
