Inspection [09/2015 - ]: Procedure

INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY (CRAWL SWITCH)

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

Tester Connection	Switch Condition	Specified Condition
3 (SW02) - 1 (E)	Speed selector switch: Medium	10 kΩ or higher
	Speed selector switch: Medium-high
	Speed selector switch: High
	Speed selector switch: Low	Below 1 Ω
	Speed selector switch: Medium-low	Below 1 Ω
4 (ECU2) - 1 (E)	Speed selector switch: Medium-low	10 kΩ or higher
	Speed selector switch: Medium
	Speed selector switch: Medium-high
	Speed selector switch: Low	Below 1 Ω
	Speed selector switch: High	Below 1 Ω
5 (SW04) - 1 (E)	Speed selector switch: Low	10 kΩ or higher
	Speed selector switch: Medium-low
	Speed selector switch: Medium
	Speed selector switch: Medium-high	Below 1 Ω
	Speed selector switch: High	Below 1 Ω
16 (HSW) - 1 (E)	ON/OFF switch: Pressed	Below 1 Ω
16 (HSW) - 1 (E)	ON/OFF switch: Not pressed	10 kΩ or higher
15 (ECU) - 1 (E)	Turn assist function switch: Pressed	Below 1 Ω
15 (ECU) - 1 (E)	Turn assist function switch: Not pressed	10 kΩ or higher

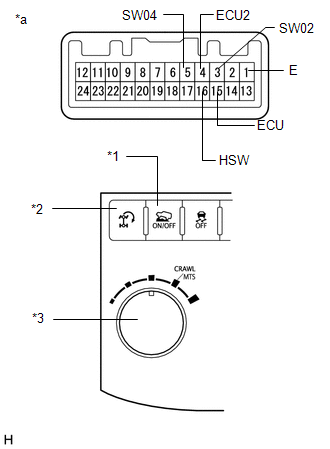

TEXT IN ILLUSTRATION

*1	ON/OFF Switch
*2	Turn Assist Function Switch
*3	Speed Selector Switch
*a	Component without harness connected: (Integration Control and Panel Assembly (CRAWL Switch))

If the result is not as specified, replace the integration control and panel assembly (CRAWL switch).
