Components [09/2015 - ]

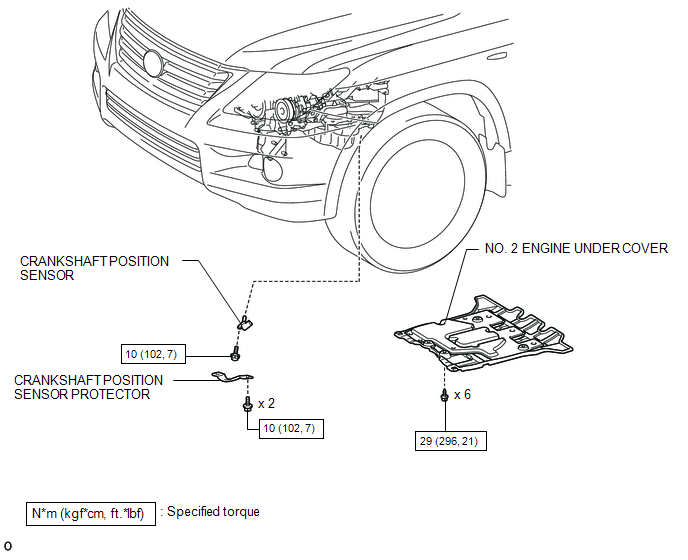

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
GTY632715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
