Components [10/2015 - ]

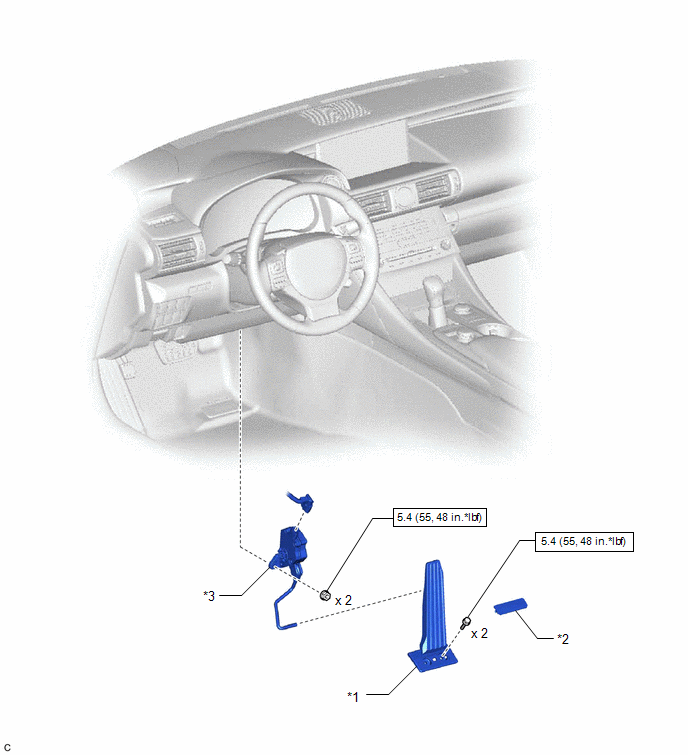

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
GTY659931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ACCELERATOR PEDAL ASSEMBLY *2 ACCELERATOR PEDAL PAD
*3 ACCELERATOR PEDAL SENSOR ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
