Installation [10/2015 - ]: Procedure

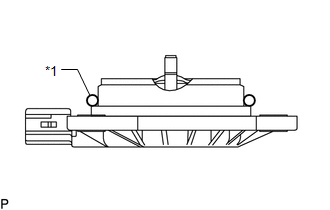

1. Apply engine oil to a new O-ring and install it to the camshaft timing oil control solenoid assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   O-ring

   NOTE:

   Do not damage the O-ring.

2. Apply adhesive to 2 or 3 threads of 2 new bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Adhesive

   Adhesive

   Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

3. Install the camshaft timing oil control solenoid assembly to the timing chain cover sub-assembly with the 2 bolts.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

   NOTE:

   • If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.
   • Make sure that the O-ring is not cracked or moved out of place when installing the camshaft timing oil control solenoid assembly.
4. Connect the camshaft timing oil control solenoid assembly connector.

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 80

Refer to PROCEDURE - Step 5 [10/2015 - 11/2019] , or refer to PROCEDURE - Step 5 [11/2019 - 11/2021] , or refer to PROCEDURE - Step 5 [11/2021 - ]
