Components [10/2015 - ]

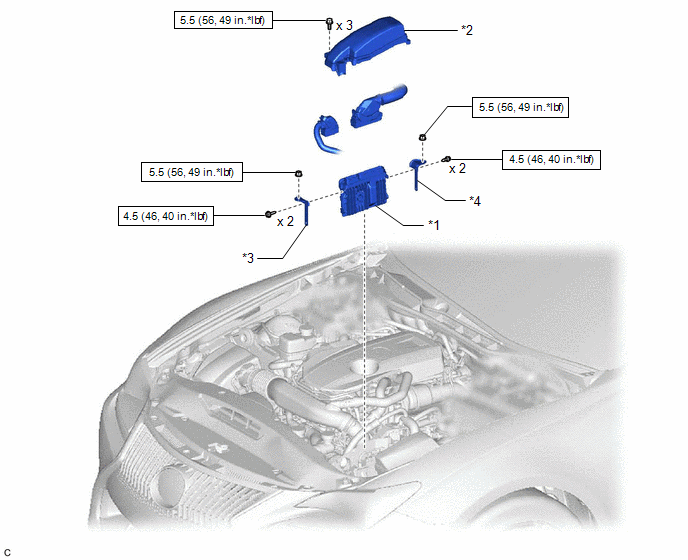

Fig 1: ECM Replacement Components With Torque Specifications
GTY683574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ECM *2 ENGINE ROOM ECU COVER
*3 NO. 1 ECM BRACKET *4 NO. 2 ECM BRACKET
N*m (kgf*cm, ft.*lbf): Specified torque - -
