Removal [10/2015 - ]: Procedure

Refer to PROCEDURE - Step 4

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

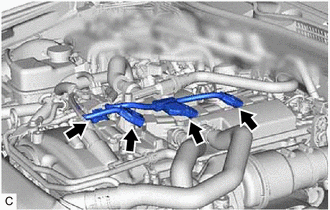

   Disconnect the 4 ignition coil assembly connectors.

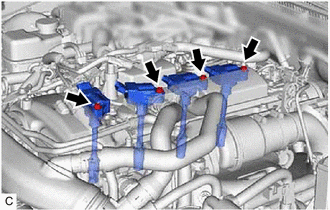

2. Remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If an ignition coil assembly has been struck or dropped, replace it.

   HINT:

   Arrange the removed parts in the correct order.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

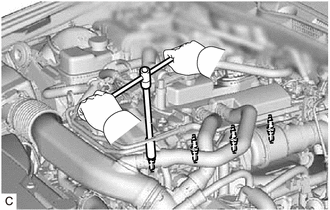

   Using a 16 mm spark plug wrench, remove the 4 spark plugs from the cylinder head sub-assembly.

   NOTE:

   If a spark plug has been struck or dropped, replace it.

   HINT:

   Arrange the removed parts in the correct order.
