Installation [09/2014 - 09/2020]: Procedure

1. Insert the connector and grommet of the rear speed sensor into the inside of the vehicle through the hole in the wheel house.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for LH Side	*B	for RH Side
   *a	Connector	*b	Grommet
   *c	Band Clamp	*d	Grommet Installation Range
   	Outside of Vehicle		Top of Vehicle

   NOTE:

   Make sure the band clamp remains on the outside of the vehicle.

2. Hold the tube of the grommet and pull it toward the outside of the vehicle, then secure the grommet to the vehicle body as shown in the illustration.
   NOTE:

   • When pulling out the grommet, do not grip the sensor wire.
   • Secure the grommet in place within the range shown in the illustration.
3. Install the 2 sensor clamps with the 2 nuts.

   Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

   NOTE:

   Do not twist the rear speed sensor wire harness when installing it.

4. Return the rear wheel house liner to its original position.
5. Install the 2 sensor clamps and rear speed sensor to the rear axle carrier sub-assembly and rear upper control arm assembly with the 3 bolts.

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

   NOTE:

   • Prevent foreign matter from attaching to the rear speed sensor tip.
   • Firmly insert the rear speed sensor body into the rear axle carrier sub-assembly before tightening the bolt.
   • After installing the rear speed sensor to the rear axle carrier sub-assembly, make sure that there is no clearance between the rear speed sensor stay and rear axle carrier sub-assembly. Also make sure that no foreign matter is stuck between the parts.
   • Do not twist the rear speed sensor wire harness when installing it.
6. Connect the rear speed sensor connector.
   NOTE:

   Do not twist the rear speed sensor wire harness when installing it.

7. Return the luggage compartment trim cover to its original position.

1. Install the rear wheel house liner with the 2 nuts.

Refer to PROCEDURE - Step 1

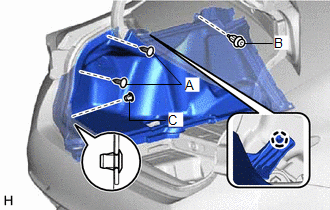

1. for Type A:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Engage the claw.
   2. Install the luggage compartment trim cover LH with the 2 clips (A) and clip (B).
   3. Install a new clip (C).
   4. Install the 2 rope hook assemblies with the 2 bolts.
   5. Engage the 4 claws to close the 2 covers.

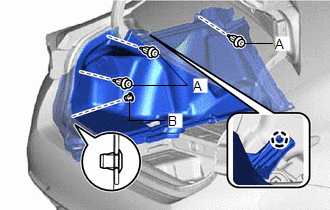

2. for Type B:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Engage the claw.
   2. Install the luggage compartment trim cover LH with the 3 clips (A).
   3. Install a new clip (B).
   4. Install the 2 rope hook assemblies with the 2 bolts.
   5. Engage the 4 claws to close the 2 covers.

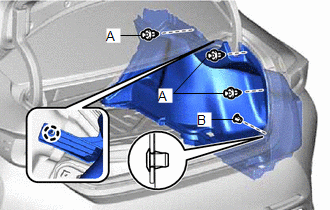

1. Engage the claw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the luggage compartment trim cover RH with the 3 clips (A).
3. Install a new clip (B).
4. Install the 2 rope hook assemblies with the 2 bolts.
5. Engage the 4 claws to close the 2 covers.

Refer to PROCEDURE - Step 9

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 14

Refer to PROCEDURE - Step 15

Refer to PROCEDURE - Step 16

Refer to PROCEDURE - Step 17

Refer to TEST MODE PROCEDURE [09/2014 - 11/2017] , or refer to TEST MODE PROCEDURE [11/2017 - 09/2020]
